Electric Hydrocarbon Recovery

Geotech Large Diameter
Filter Scavenger™

The Large Diameter Filter Scavenger™ is a high efficiency active product recovery system capable of recovering Light Non-Aqueous Phase Liquids (LNAPL) from water. It can be used in open environments such as manholes, ponds, trenches, open lagoons or large diameter wells to 20' (6 m) deep.

• Efficiently separates hydrocarbons from water
  in-situ using an oleophilic/hydrophobic membrane
• Intake floats on the water surface and automatically adjusts as water level fluctuates
• Intrinsically safe explosion-proof design
• Portable self-contained design for quick and easy startup, ideal for emergency response
• Durable construction for harsh field conditions
• Recovers hydrocarbons to a sheen
• Salt water and aromatic hydrocarbon models
  available

Call 1-800-833-7958

Geotech Large Diameter Filter Scavenger Specifications
Geotech Large Diameter Filter Scavenger Manual

Hydrocarbon Viscosity Test Kit

Geotech Large Diameter
Dangle Scavenger™

The Dangle Scavenger is a unique separating and pumping system designed for the efficient active recovery of free phase hydrocarbon product from the surface water. The system is portable and is electrically safe for use in hazardous locations. The heart of the Dangle Scavenger is a floating oil/water separator which passes recovered oil to a remote pump and control assembly. Actual separation of oil or other hydrocarbons from water is effected by a mesh screen located in the floating buoy assembly. This screen is specially treated to pass oil and repel water.

• Efficiently separates hydrocarbons from water in-situ
  using an oleophilic/hydrophobic membrane
• Intake floats on the water surface
• Automatically adjusts as water level fluctuates
• Intrinsically safe explosion-proof design
• Portable self-contained design
• For quick and easy startup, ideal for
  emergency response
• Durable construction for harsh field conditions
• Recovers hydrocarbons to a sheen
• Salt water and aromatic hydrocarbon models
  available

Call 1-800-833-7958

Geotech Large Diameter Dangle Scavenger Specs
Geotech Large Diameter Dangle Scavenger Manual

Hydrocarbon Viscosity Test Kit

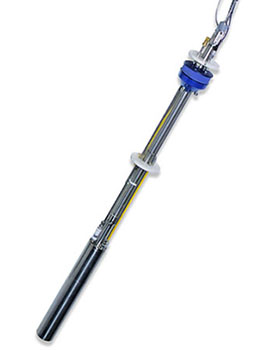

Geotech Small Diameter Filter Scavenger™

The Geotech Small Diameter Filter Scavenger™ is an active hydrocarbon recovery system capable of recovering a wide range of floating hydrocarbons from groundwater. The system is designed to fit into a 4" (10cm) well or larger.

• Unique design makes product recovery more efficient than total fluids or dual phase extraction
• Ideal for wells with static fluid levels down to
  150' (46m) deep
• Operates reliably in fluctuating water levels
• Uses oleophilic/hydrophobic membrane to separate and recover oil from water table down hole
• 100% portable for use well to well or site to site
• Highly efficient water-free product recovery
• Custom applications available to meet your site
  specific conditions
• Fully automated operation
• Complemented results with use of water table depression pump
• Explosion proof controls available for use in hazardous environments (Class I, Div 1)

Call 1-800-833-7958

Geotech Small Diameter Filter Scavenger Specifications
Geotech Small Diameter Filter Scavenger Manual

See the Geotech Hydrocarbon Viscosity Test Kit below.

Geotech Hydrocarbon Viscosity Test Kit

The Hydrocarbon Viscosity Test Kit is used to determine hydrocarbon viscosity vs. applicability of the oleophilic/
hydrophobic screen technology. It is especially useful when the Geotech Product Recovery System is going to be used to collect varying hydrocarbons.

The test kit comes with a glass container and lid, floatable test screens of 100 and 60 mesh, sample container, and a syringe for injecting the sample. This screen technology is used on Geotech's product line of assorted intake cartridges and Skimmer assemblies.

Call 1-800-833-7958

Geotech Hydrocarbon Viscosity Test Kit User Manual

Geotech
Shallow Well Probe Scavenger™

The Geotech Shallow Well Probe Scavenger™ is a portable surface mounted system designed for high rate active recovery of free phase hydrocarbon layers. Product can be reduced to a measurable layer of 2 inches (5cm). It is ideal for wells as small as 2" (5cm) in diameter where the depth to water is less than 20 feet (6m). The system incorporates a highly effective suction lift pump, discriminating level sensor and an explosion-proof control panel for use within hazardous environments.

• Product recovery pump rates up to 4 GPM (15 LPM)
• Sensor technology provides water-free
  product recovery
• Ideal for 2 inch (5cm) or larger diameter wells
• Effective recovery to 20 foot (6m) depth
• Recovers product layer down to 2" (5cm) thickness
• Comes in portable field case 24" x 24" x 24"
  (61 x 61 x 61cm)
  - Weatherproof, rugged and durable
• Use alone or with a water table depression pump.
• Tankfull Shutoff with 25' (7.6m) cable

Call 1-800-833-7958

Geotech Shallow Well Probe Scavenger Specifications
Geotech Shallow Well Probe Scavenger Manual

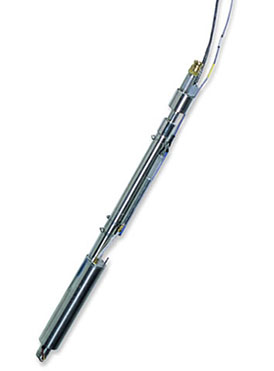

Geotech Small Diameter Probe Scavenger™

The Geotech Small Diameter Probe Scavenger™ is used to recover a wide range of floating hydrocarbons from shallow and deep wells. It is designed to operate either alone or in conjunction with a water table depression pump in wells as small as 4" (10cm) in diameter. It can actively recover a floating product layer down to a 2" (5cm) thickness. Stainless steel and other corrosion resistant components allow efficient usage in a variety of subsurface conditions.

• For applications in 4 inch (10cm) and larger diameter wells
• Efficient product recovery to depths of 100 ft. (30m)
• Lighter-than-water (LNAPL) product recovery
• Can be used as a stand-alone system or in conjunction with a water table depression pump
• Reliable around-the-clock operation in
  automatic mode
• Sensor technology provides water-free
  product recovery
• Remote monitoring and troubleshooting capability
  with the optional Geotech ECM

Call 1-800-833-7958

Geotech Small Diameter Probe Scavenger Specifications
Geotech Small Diameter Probe Scavenger Manual
