Geotech geosquirt 12V DC Purge Pump
The geosquirt Purge Pump is designed for purging shallow wells up to a maximum depth of 90 feet (27 m).
The pump is completely sealed and designed to be operated while completely submerged in water.
- Operates to depths of 90' (27 m)
- Very economical and reliable
- Flow rates up to 2.5 GPM (9.5 LPM)
- Ideal for 2" (5 cm) diameter or larger monitoring well
- Requires an independent 12V DC power supply
- Optional portable reel system with tubing
| Single Stage | Double Stage | Triple Stage | ||
| Dimensions |
1.43" D x 5" L (3.6cm D x 12.7cm L) |
1.68" D x 10.5" L (4.27cm D x 26.67cm L) |
1.68" D x 16" L (4.27cm D x 41cm L) |
|
| Outlet | Requires ⅜" (10 mm) I.D. tubing |
Requires ⅜" (10 mm) I.D. tubing |
Requires ⅜" (10 mm) I.D. tubing |
|
| Optional Outlet Adapter |
Optional fitting allows ½" (13 mm) tubing |
Optional fitting allows ½" (13 mm) tubing |
Optional fitting allows ½" (13 mm) tubing |
|
| Power | Requires an independent 12V DC source |
Requires an independent 12V DC source |
Requires an independent 12V DC source |
|
| Current Draw | 3.3 amps | 6.2 amps | 8.0 amps | |
| Voltage Range | 10V-15V | 10V-15V | 10V-15V | |
| Principle of Operation |
Intermittently rated centrifugal pump |
Intermittently rated centrifugal pump |
Intermittently rated centrifugal pump |
|
| Operating Temperature |
In water up to 140°F (60°C) do not freeze pump |
In water up to 140°F (60°C) do not freeze pump |
In water up to 140°F (60°C) do not freeze pump |
|

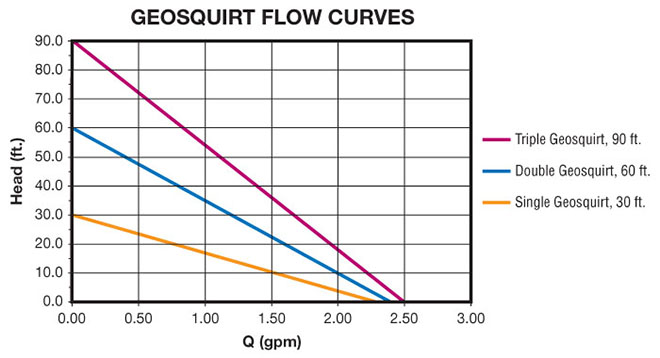

| Flow Rate | Up to 2.5 GPM (9.5 LPM) | Up to 2.5 GPM (9.5 LPM) | Up to 2.5 GPM (9.5 LPM) | |
| Maximum Recommended Depth |
30 feet (9 m) | 60 feet (18 m) | 90 feet (27 m) | |
| Material of Casing | ABS plastic | ABS plastic | ABS plastic | |
| Material of Seal | Rubber | Rubber | Rubber | |
| Length of Motor Lead |
30 feet (9 m) | 60 feet (18 m) | 90 feet (27 m) | |
| Recommended Duty Cycle |
5 min. off/15 min. on | 5 min. off/15 min. on | 5 min. off/15 min. on |
The geosquirt purge pump can be purchased alone or as a complete system with reel and tubing. It is used to pump large quantities from shallow wells. Pump should be allowed to cool for 5 minutes for every 15 minutes of operation. It can operate in water temperatures as high as 140°F (60°C), but must be submerged at all times.

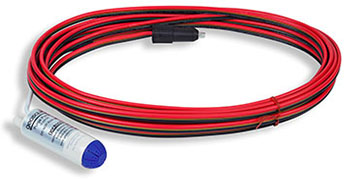

| Single Stage geosquirt with 30 ft. (9 m) Motor Lead |
| Double Stage geosquirt with 60 ft. (18 m) Motor Lead |
| Triple Stage geosquirt with 90 ft. (27 m) Motor Lead |
