Geotech PRC Passive Skimmer

The Geotech Product Recovery Canister (PRC) is a passive skimmer designed to recover product-only (LNAPL) layers down to a sheen. The PRC features a floating intake that adjusts for groundwater fluctuations, a product canister for measuring recovered volumes, and a product drain valve designed to eliminate fluid splattering.

  • Floating olephilic intake auto adjusts for water level changes
  • Ideal for extreme environments and low recovery applications
  • Configured for dedicated or portable installations
  • Choice of floating intake mesh sizes


2" PRC System:

  • 12" (30.5cm) effective buoy travel
  • Oleophilic intake
  • 60 or 100 mesh
  • Transparent collection canister
  • Product drain valve
  • 25' of suspension cable with adjustable clamp
  • Optional protective SS screen


4" PRC System:

  • 16" (40.6 cm) effective buoy travel
  • Oleophilic intake (60 or 100 mesh)
  • White collection canister
  • Product drain valve
  • 25' of suspension cable with adjustable clamp
  • Slotted protective PVC screen



4" PRC
1 Liter 3 Liter 4 Liter
Dimensions

37.0" L x 3.5" OD
(94cm x 9cm)
53.0" L x 3.5" OD
(135cm x 9cm)
60.0" L x 3.5" OD
(152cm x 9cm)
Empty Weight 8 lbs. (3.7kg) 15 lbs. (6.8kg) 16 lbs. (8.2kg)
Full Weight 9.5 lbs. (4.3kg) 19 lbs. (8.6kg) 25.5 lbs. (11.6kg)
Capacity .26 gal. .8 gal. 1.06 gal.
Min. Water Depth Required 18.5" (47cm)
35.0" (89cm)
43.0" (109cm)
Materials (All) Stainless steel, brass, and engineered plastics



2" PRC
0.125 Liter 0.25 Liter 0.5 Liter 1 Liter
Dimensions

With Optional SS Screen

43.5" L x 1.75" OD (110cm x 4.4cm)
43.5" L x 1.88" OD
(110cm x 4.8cm)
49.0" L x 1.75" OD (149cm x 4.4cm)
49.0" L x 1.88" OD
(149cm x 4.8cm)
59.5" L x 1.75" OD (151cm x 4.4cm)
59.5" L x 1.88" OD
(151cm x 4.8cm)
82.5" L x 1.75" OD (210cm x 4.4cm)
82.5" L x 1.88" OD
(210cm x 4.8cm)
Empty Weight
With Optional SS Screen
2.9 lbs. (1.3kg)
4.3 lbs. (2.0kg)
3.1 lbs. (1.4kg)
4.5 lbs. (2.0kg)
3.5 lbs. (1.6kg)
4.9 lbs. (2.2kg)
5.2 lbs. (2.4kg)
6.6 lbs. (3.0kg)
Full Weight
With Optional SS Screen
3.1 lbs. (1.4kg)
4.5 lbs. (2.1kg)
3.5 lbs. (1.6kg)
4.9 lbs. (2.2kg)
4.3 lbs. (2.0kg)
5.7 lbs. (2.6kg)
6.7 lbs. (3.0kg)
8.1 lbs. (3.7kg)
Capacity 0.035 gal. 0.07 gal. 0.13 gal. 0.26 gal.
Min. Water Depth Required 23.5" (60cm) 29.0" (74cm) 39.5" (100cm) 62.0" (157cm)
Materials (All) Stainless steel, brass, and engineered plastics
      Expandable Locking Well Caps
Expandable Locking Well Cap:   2", 4", 6", or 8"
Hanger Bracket:   Universal
Additional Suspension Cable:   3/32" per foot

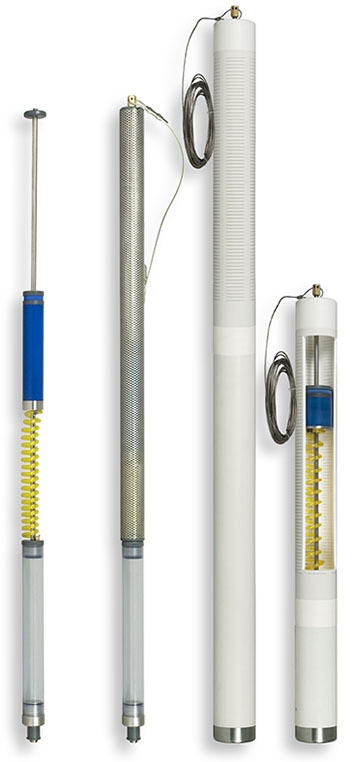

2 inch & 4 inch PRCs
(L) 2" PRC
with .25 Liter Canister
(R) 2" PRC
with .25 Liter Canister
and SS Screen
(L) 4" PRC
with 4 Liter Canister
(R) Cutaway View
of 4" PRC
with 1 Liter Canister
