Geotech SS High Flow Air Strippers

Low Profile Air Strippers


The Geotech SS Air Strippers are designed to remove many volatile organic compounds (VOCs) from water using a countercurrent design that treats contaminated water with 99.99% efficiency in a single pass. Geotech offers a wide variety of sizes ranging from one to six trays – capable of handling a flow rate from .5 GPM to 1300 GPM.

  • No Recirculating – No Liquid Phase Media or Packing
  • Removes a wide variety of volatile organic compounds
  • Vacuum induced design providing more efficiency andeliminates leaks
  • Wide variety of tray configurations based on treatmentcriteria
  • Easier maintenance with designated cleaning ports
  • Remote telemetry for system monitoring available
  • Inquire about complete pump and treatment systems
Model No.
of
Trays
Flow
Rate
(GPM)
H L W Sump
Pump
Range
(GAL)
Sump
Cap.
(GAL)
Flood
Vol.
(GAL)
Airflow
SCFM (MIN/MAX)
Delta P
(IN-H2O)
Air
Sump
Inlet
Air
Outlet
Cplg.
Liquid
Inlet
Liquid
Outlet
Pumped
Liquid
Outlet
Gravity
1300 Series
NS-1311 1 0.5–22.5 4'6" 3'0" 1'0" 10 20 42 150/195 6–10 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
NS-1321 2 0.5–22.5 5'3" 3'0" 1'0" 10 20 42 150/195 10–14 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
NS-1331 3 0.5–22.5 6'0" 3'0" 1'0" 10 20 42 150/195 14–18 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
NS-1341 4 0.5–22.5 6'9" 3'0" 1'0" 10 20 42 150/195 18–22 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
NS-1351 5 0.5–22.5 7'6" 3'0" 1'0" 10 20 42 150/195 22–26 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
NS-1361** 6 0.5–22.5 8'3" 3'0" 1'0" 10 20 42 150/195 26–30 8" 6" 1.25" FNPT 2" FNPT 2" FNPT
2300 Series
NS-2311 1 1–45 4'6" 3'0" 2'0" 21 40 85 300/390 6–10 8" 6" 2" FNPT 3" FNPT 3" FNPT
NS-2321 2 1–45 5'3" 3'0" 2'0" 21 40 85 300/390 10–14 8" 6" 2" FNPT 3" FNPT 3" FNPT
NS-2331 3 1–45 6'0" 3'0" 2'0" 21 40 85 300/390 14–18 8" 6" 2" FNPT 3" FNPT 3" FNPT
NS-2341 4 1–45 6'9" 3'0" 2'0" 21 40 85 300/390 18–22 8" 6" 2" FNPT 3" FNPT 3" FNPT
NS-2351 5 1–45 7'6" 3'0" 2'0" 21 40 85 300/390 22–26 8" 6" 2" FNPT 3" FNPT 3" FNPT
NS-2351** 6 1–45 8'3"" 3'0" 2'0" 21 40 85 300/390 26–30 8" 6" 2" FNPT 3" FNPT 3" FNPT
2600 Series
NS-2611 1 2–115 4'6" 6'0" 2'0" 42 80 170 600/780 6–10 8" 8" 2" FNPT 4" FNPT 4" FLG
NS-2621 2 2–115 5'3" 6'0" 2'0" 42 80 170 600/780 10–14 8" 8" 2" FNPT 4" FNPT 4" FLG
NS-2631 3 2–115 6'0" 6'0" 2'0" 42 80 170 600/780 14–18 8" 8" 2" FNPT 4" FNPT 4" FLG
NS-2641 4 2–115 6'9" 6'0" 2'0" 42 80 170 600/780 18–22 8" 8" 2" FNPT 4" FNPT 4" FLG
NS-2651 5 2–115 7'6" 6'0" 2'0" 42 80 170 600/780 22–26 8" 8" 2" FNPT 4" FNPT 4" FLG
NS-2661** 6 2–115 8'3" 6'0" 2'0" 42 80 170 600/780 26–30 8" 8" 2" FNPT 4" FNPT 4" FLG
3600 Series
NS-3611 1 3–160 4'6" 6'0" 3'0" 64 121 255 900/1170 6–10 8" 10" 3" FNPT 4" FNPT 6" FLG
NS-3621 2 3–160 5'3" 6'0" 3'0" 64 121 255 900/1170 10–14 8" 10" 3" FNPT 4" FNPT 6" FLG
NS-3631 3 3–160 6'0" 6'0" 3'0" 64 121 255 900/1170 14–18 8" 10" 3" FNPT 4" FNPT 6" FLG
NS-3641 4 3–160 6'9" 6'0" 3'0" 64 121 255 900/1170 18–22 8" 10" 3" FNPT 4" FNPT 6" FLG
NS-3651 5 3–160 7'6" 6'0" 3'0" 64 121 255 900/1170 22–26 8" 10" 3" FNPT 4" FNPT 6" FLG
NS-3661** 6 3–160 8'3" 6'0" 3'0" 64 121 255 900/1170 26–30 8" 10" 3" FNPT 4" FNPT 6" FLG
31200 Series
NS-31211 1 6–425 5'7" 11'8" 2'10" 116 301 587 1800/2340 6–10 10" 16" 4" FLG 4" FNPT 8" FLG
NS-31221 2 6–425 6'7" 11'8" 2'10" 116 301 587 1800/2340 10–14 10" 16" 4" FLG 4" FNPT 8" FLG
NS-31231 3 6–425 7'7" 11'8" 2'10" 116 301 587 1800/2340 14–18 10" 16" 4" FLG 4" FNPT 8" FLG
NS-31241 4 6–425 8'7" 11'8" 2'10" 116 301 587 1800/2340 18–22 10" 16" 4" FLG 4" FNPT 8" FLG
NS-31251 5 6–425 9'7" 11'8" 2'10" 116 301 587 1800/2340 22–26 10" 16" 4" FLG 4" FNPT 8" FLG
NS-31261** 6 6–425 10'7" 11'8" 2'10" 116 301 587 1800/2340 26–30 10" 16" 4" FLG 4" FNPT 8" FLG
41200 Series
NS-41211 1 8–550 5'7" 12'0" 4'0" 171 442 862 2400/3120 6–10 10" 18" 6" FLG 4" FNPT 10" FLG
NS-41221 2 8–550 6'7" 12'0" 4'0" 171 442 862 2400/3120 10–14 10" 18" 6" FLG 4" FNPT 10" FLG
NS-41231 3 8–550 7'7" 12'0" 4'0" 171 442 862 2400/3120 14–18 10" 18" 6" FLG 4" FNPT 10" FLG
NS-41241 4 8–550 8'7" 12'0" 4'0" 171 442 862 2400/3120 18–22 10" 18" 6" FLG 4" FNPT 10" FLG
NS-41251 5 8–550 9'7" 12'0" 4'0" 171 442 862 2400/3120 22–26 10" 18" 6" FLG 4" FNPT 10" FLG
NS-41261** 6 8–550 10'7" 12'0" 4'0" 171 442 862 2400/3120 26–30 10" 18" 6" FLG 4" FNPT 10" FLG
61200 Series
NS-61211 1 12–1000 5'7" 12'0" 6'0" 256 663 1293 3600/4680 6–10 12" 18" 8" FLG 4" FNPT 12" FLG
NS-61221 2 12–1000 6'7" 12'0" 6'0" 256 663 1293 3600/4680 10–14 12" 18" 8" FLG 4" FNPT 12" FLG
NS-61231 3 12–1000 7'7" 12'0" 6'0" 256 663 1293 3600/4680 14–18 12" 18" 8" FLG 4" FNPT 12" FLG
NS-61241 4 12–1000 8'7" 12'0" 6'0" 256 663 1293 3600/4680 18–22 12" 18" 8" FLG 4" FNPT 12" FLG
NS-61251 5 12–1000 9'7" 12'0" 6'0" 256 663 1293 3600/4680 22–26 12" 18" 8" FLG 4" FNPT 12" FLG
NS-61261** 6 12–1000 10'7" 12'0" 6'0" 256 663 1293 3600/4680 26–30 12" 18" 8" FLG 4" FNPT 12" FLG
81200 Series
NS-81211 1 16–1300 5'7" 12'0" 8'0" 342 884 1724 4800/6240 6–10 12" 18" 8" FLG 4" FNPT 12" FLG
NS-81221 2 16–1300 6'7" 12'0" 8'0" 342 884 1724 4800/6240 10–14 12" 18" 8" FLG 4" FNPT 12" FLG
NS-81231 3 16–1300 7'7" 12'0" 8'0" 342 884 1724 4800/6240 14–18 12" 18" 8" FLG 4" FNPT 12" FLG
NS-81241 4 16–1300 8'7" 12'0" 8'0" 342 884 1724 4800/6240 18–22 12" 18" 8" FLG 4" FNPT 12" FLG
NS-81251 5 16–1300 9'7" 12'0" 8'0" 342 884 1724 4800/6240 22–26 12" 18" 8" FLG 4" FNPT 12" FLG
NS-81261** 6 16–1300 10'7" 12'0" 8'0" 342 884 1724 4800/6240 26–30 12" 18" 8" FLG 4" FNPT 12" FLG
*  Dimensions are approximate and do not include Skid. Actual dimensions will vary depending on options or blower selection.
** Induced draft configuration

Inlet Chamber
Influent wastewater enters into the unit through the inlet or optional spray nozzle. The wastewater will then flow over the weir and enter into the aeration trays.

Inlet Connections
All connections 3" and smaller are FNPT couplings. All connections 4" and larger are flanges with ANSI 150 pound standard bolt circle. Flanged piping connections conform to ANSI B16.5.

Aeration Trays
Units are constructed out of stainless steel.
Once the wastewater starts to flow over the trays, clean air is blown up through 3/16" orifices that are strategically spaced in the tray. This injection of clean air will create a froth of bubbles, which generates a large mass transfer surface area. This surface area will volatilize the specified contaminants in the water.
More trays and larger sized units are used to strip the contaminants that require more residence time to reach optimal volatilization.
The water will flow through a series of aeration tray channels and then flow down through the downcomer to the next tray or water holding sump tank.

Outlet
Clean water exits the water holding sump tank through the outlet, either by pumped flow or gravity flow discharge.

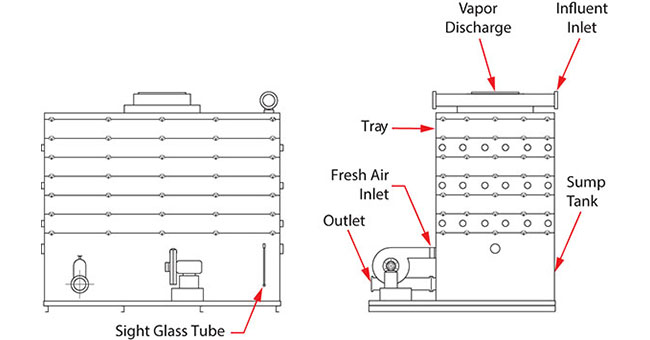

Geotech SS Air Stripper Components

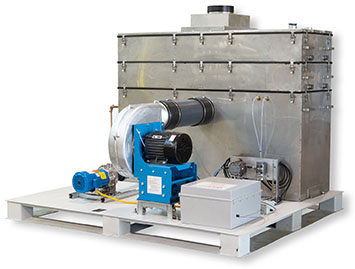

Geotech 2-Tray SS Air Stripper

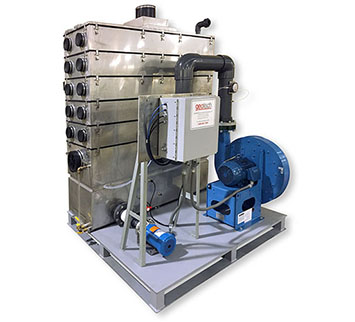

Geotech 5-Tray Air Stripper
