Geotech 1500'-5000' Water Level Meters
The Geotech Water Level Meters are portable instruments used to accurately measure water levels in monitoring wells and bore holes. The meter detects water levels with a 5/8" (15.8mm) O.D. stainless steel weighted probe attached to a polyethylene tape marked to 1/100 of a foot (3mm).
- Choice of highly accurate Polyethylene coated steel tape marked in engineering or metric increments
- Field serviceable 5/8" (15.8mm) probe with stainless steel conductors for durability
- Adjustable sensitivity to prevent false triggering
- Audible and visible alarms activated when the probe makes contact with water
- Easily replaced 9 volt battery
- MDPE or ETFE coated steel tape available upon request
- Optional tape weight to help sink probe into a deep or crooked well
| Size: | ||
| 1500-2000 ft. Reel |
||
| Manual Electric |
|
18.25" H x 14" W x 15" L (46cm H x 36cm W x 38cm L) 18.25" H x 14" W x 20.5" L (46cm H x 36cm W x 52cm L) |
| 2500-3000 ft. Reel | ||
| Manual Electric |
18.25" H x 14" W x 21" L (46cm H x 36cm W x 53cm L) 18.25" H x 14" W x 26.5" L (46cm H x 36cm W x 67cm L) |
|
| Probe | 5/8" O.D. x 6 1/8" L (1.59cm O.D. x 15.56cm L) | |
| Probe Weight | 4.53 oz. (125.8 g) | |
| *Contact Sales for Information reguarding 3500' or longer lengths. | ||
| Length & Weight: |
1500 ft./450m = 61 lbs./28 kg (manual) 1500 ft./450m = 80 lbs./36 kg (electric) 2000 ft./600m = 68 lbs./31 kg (manual) 2000 ft./600m = 87 lbs./39 kg (electric) 2500 ft./750m = 79 lbs./36 kg (manual) 2500 ft./750m = 98 lbs./44 kg (electric) 3000 ft./925m = 86 lbs./39 kg (manual) 3000 ft./925m = 105 lbs./47 kg (electric) |
|
| Accuracy: | ||
| ET Tape Min. Detectable Conductivity |
100th of a foot /100' (3m/ 30m) (Per Federal Specification GGG-T-106E) 10 μS |
|
| Material: | ||
| Reel | Steel and aluminum | |
| Tape | Polyethylene coated steel | |
| Probe | Stainless Steel and Acetal | |
| Power: | 9 Volt DC alkaline battery | |
| Battery Life | 8 hours continuously detecting >1 year On not detecting | |
| Alarm: | 5 kHz output tone | |
| Temperature: | ||
| Operating | 32°-140°F (0°-60°C) | |
| Storage Temperature | -40°-150°F (-40°-70°C) | |
| Response Time: | <10 milliseconds | |

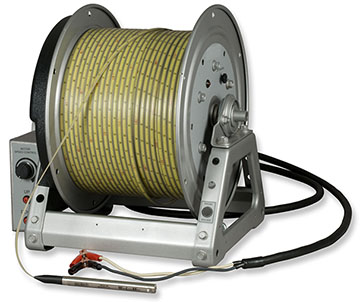

| 2000' (600m) Water Level Meter (optional electric rewind) |

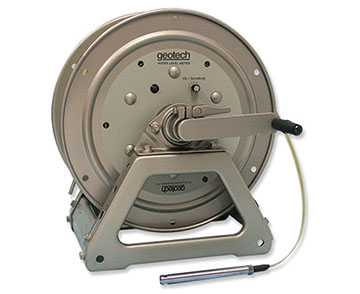

| 1500' (450m) Water Level Meter (manual rewind) |
| 5/8" (1.59cm) Field Replaceable Probe |
| Optional White MDPE Tape |
| Optional Tape Weight |
