Geopump™ Peristaltic Pumps

A peristaltic pump often is a good choice for obtaining samples collected from wells at a depth of 29 ft. or less.*

The Geotech GeoPump™ is a portable, peristaltic-style pump, engineered for collecting shallow groundwater and surface water samples. The pump is designed to operate seamlessly on both 12V DC or 120VAC power sources, making it an ideal tool for fieldwork and equally efficient for lab applications. The GeoPump's unique design prioritizes sample integrity, significantly reducing the risk of cross-contamination. Fluids being sampled interact exclusively with the tubing and not the pump mechanism, effectively eliminating the need for decontamination of pump components between sampling points.

*View Tubing Specifications



  • Exceptional field durability
  • Operate to a depth up to 29 feet (8.8 meters)
  • Variable speed control
  • Designed for low-flow, purge and sample, descrete, and filtration
  • AC only, DC only, or AC/DC combination
  • Two pumping stations available, which can be piggybacked for multi-station pumping
  • Reversible flow feature for back-flushing
  • Disposable and dedicated tubing means controlled costs and no decontamination issues
Operating Range   Suction from 29 feet (8.8 meters) at sea level
Principle of Operation   Mechanical peristalsis
Dimensions   3.5 x 8 x 8 in. (9 x 20 x 20 cm)
Power Source

  Any external 12-18V DC @ 70 watts
90-260V AC 47-65 Hz
Power Cord Length:

  AC Cord 8 feet (2.4 meters)
DC Cord 15 feet (4.6 meters)
Range of Speed:
Series I
Series II

  60 to 350 rpm
First pumping station 30 to 300 rpm
Second pumping station 60 to 600 rpm
Speed Control   Stepless variable speed control
Pumping Options   Pressure or vacuum (reversible flow)
Pump Head Rotor   Cold rolled steel
Warranty   1 year
Basic System Kit

  Geopump (as specified), 5 ft. (1.5 m) of tubing,
power cord (as specified), field case, and manual
Pump Head (sold separately)   Standard, Easy-load® II

The Geotech Peristaltic Pumps operate by mechanical peristalsis, so the sample only comes in contact with the tubing. This allows for sample integrity as well as easy cleaning and replacement. With the optional stainless steel tubing weight, tubing can be lowered to a specific depth without curling or floating on the surface of the water. Geopumps operate from any external 12V DC or 120V AC power source.

SERIES I Geopump™ Peristaltic Pumps are available in AC only, DC only, or AC/DC combination. These units have one pumping station which can be piggy-backed for multi-station pumping. They have variable speeds ranging from 60 RPM to 350 RPM.

SERIES II Geopump™ Peristaltic Pumps are available in AC only, DC only, or AC/DC combination. They have two pumping stations which can also be piggy-backed for multi-station pumping. The first pumping station has a variable speed of 30 to 300 RPM and the second station 60 to 600 RPM.

CE

  • Easy-load® II pump head
  • Silicone tubing
  • Tygon tubing
  • Other tubing
  • Stainless steel tubing weights
  • Custom length power cord
  • Geotech Back Flushing Membrane Filter Holder
  • Geotech in-line dispos-a-filter™ filter capsule
  • Rechargeable battery
  • Battery charger
  • Optional stainless steel rotor for pump
  • Additional power cords
  • Carrying case
  Geopump Tubing Weights
Fits ¼"
OD
Tubing
Fits 3/8" OD
Tubing
#15/24 Peristaltic Tubing #36 Peristaltic Tubing

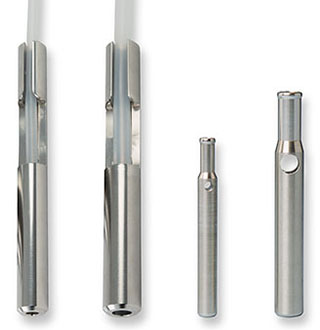

Geopump™ Tubing Weights

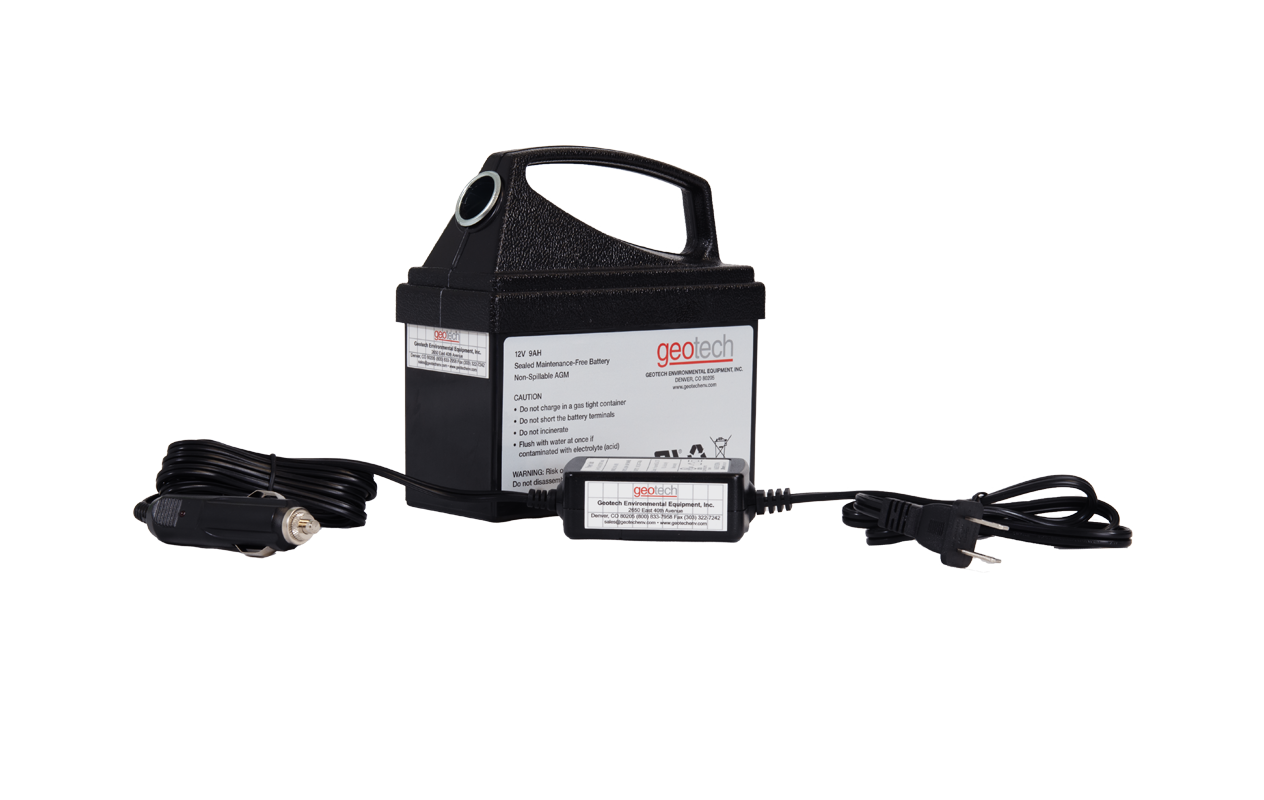

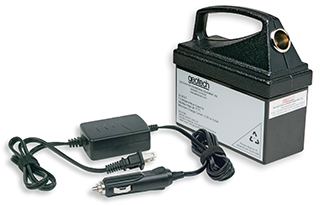

Geopump Modular Battery and ChargerGeopump™ Modular Battery and Charger

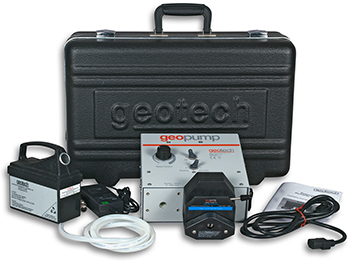

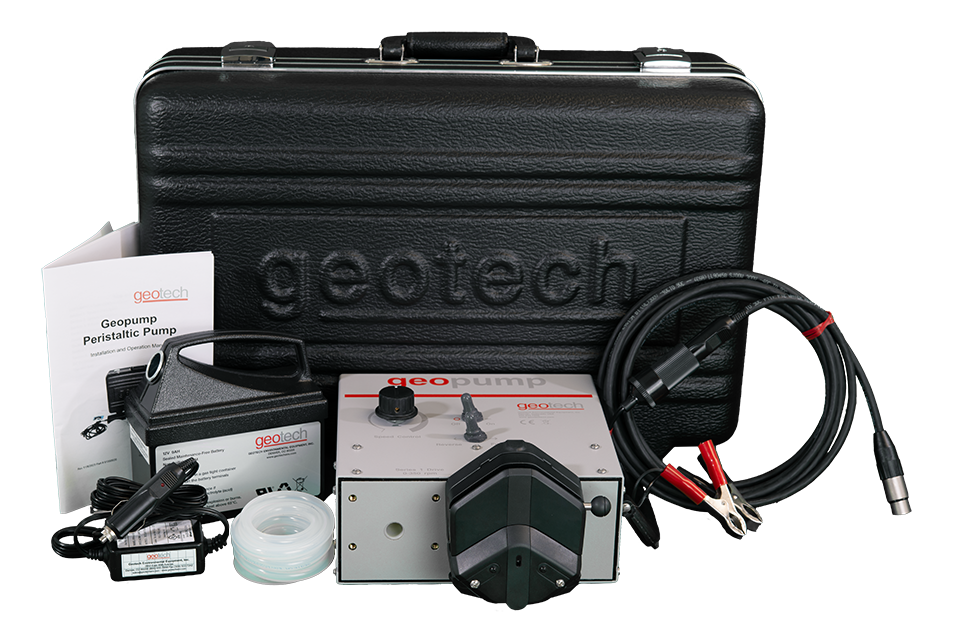

Geopump Peristaltic Pump Series II Kit Geopump™ Peristaltic Pump Series II Kit with optional Easy-load® II® pump head, modular battery, 5 ft. (1.5 m) tubing, carrying case and power cord.

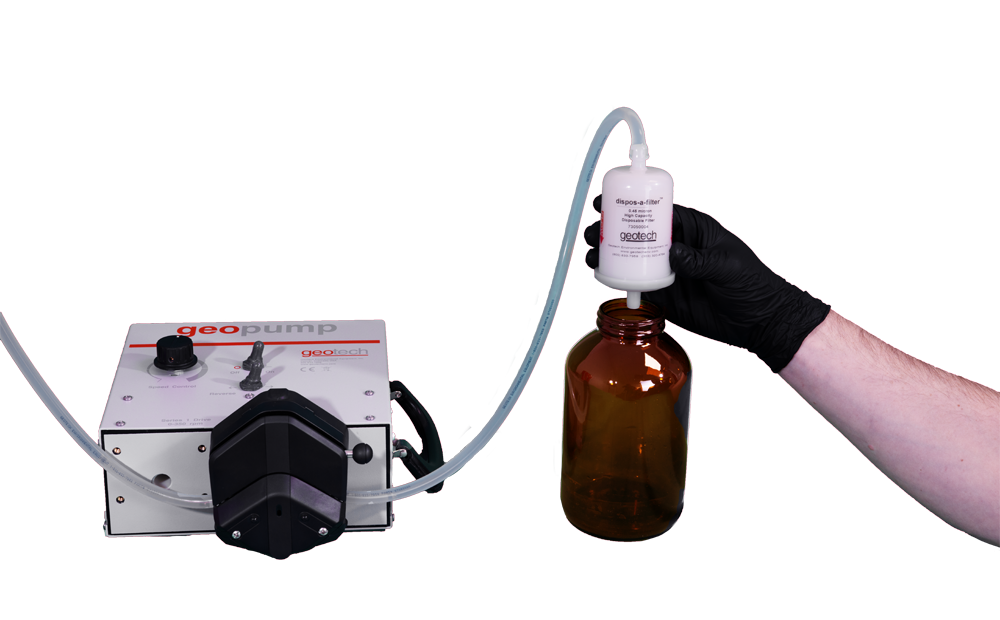

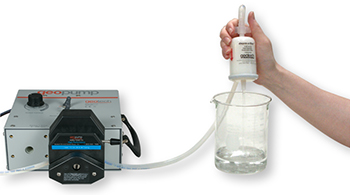

Sample collection with the Geopump Sample collection with the Geopump™ Peristaltic Pump Series II with optional Easy-load® II pump head (dispos-a-filter™ capsule sold separately)

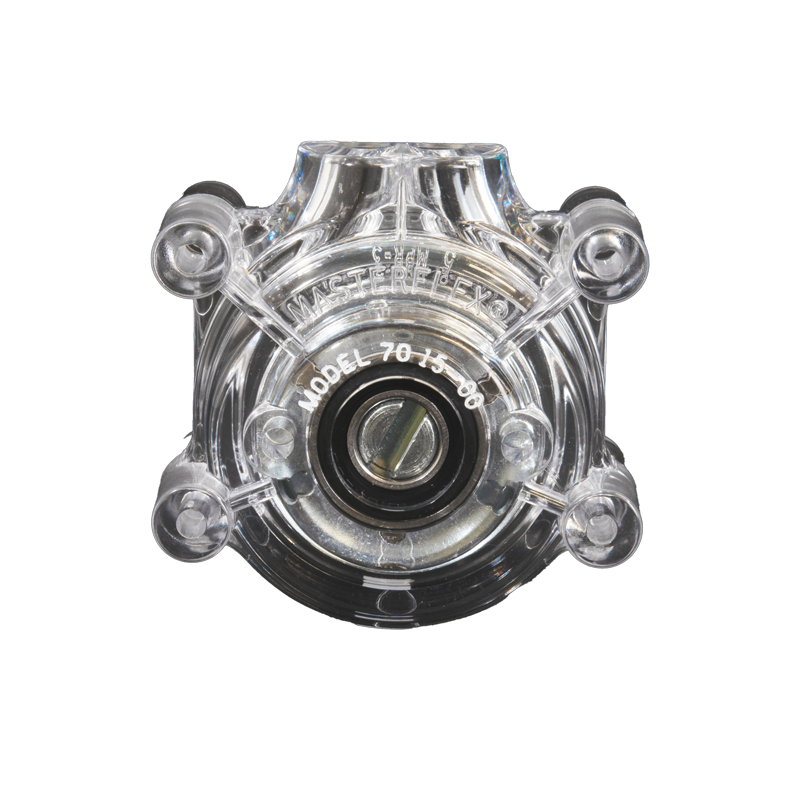

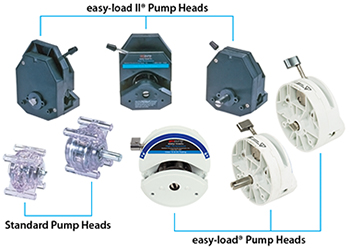

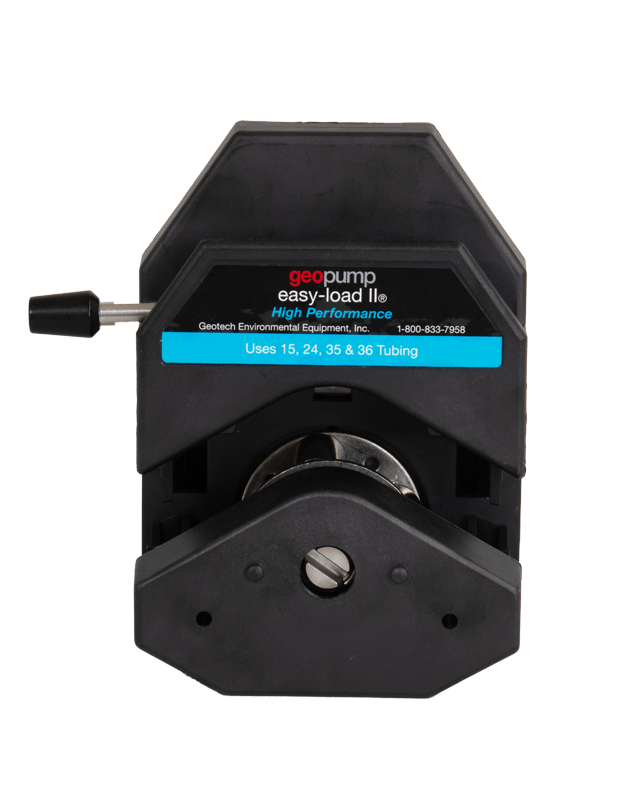

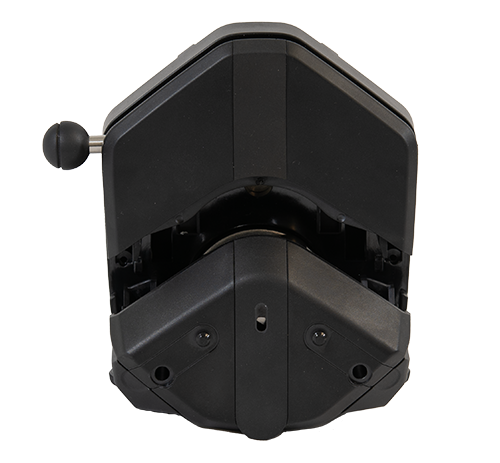

Geopump Pump HeadsEasy-load® II pump heads shown above, Standard pump heads shown below.
