Photoionization Detectors (PID)

MiniRAE 3000

ppbRAE 3000

RAE MiniRAE 3000 and ppbRAE 3000

The MiniRAE 3000 and ppbRAE 3000 are the most advanced handheld volatile organic compound (VOC) monitors on the market. Their photoionization detector’s (PID) extended range of 0 to 15,000 ppm (1 ppb to 10,000 ppm – ppbRAE 3000) make them ideal instruments for industrial hygiene, leak detection, HazMat/Homeland Security, indoor air quality and military applications.

The RF modem allows real-time data transmissions with a base controller located up to 500 feet away from the MiniRAE 3000 or ppbRAE 3000 (or two miles with optional RAELink3 portable modem). A personal computer can be used as the base station for these systems. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely located monitors, including MiniRAE 3000, ppbRAE 3000, AreaRAE, etc.

• Proven PID technology
  The patented sensor provides the following unique features:
  - 3-second response time
  - Extended range up to 15,000 ppm (MiniRAE 3000), or 1 ppb to 10,000 ppm (ppbRAE 3000) with improved linearity
  - Humidity compensation with integral humidity and
  temperature sensors
• Real-time wireless data transmission
  Built-in RF modem or Bluetooth
• Designed for simple service
  Easy access to lamp and sensor in seconds without tools
• Big graphic display
  Easy overview of gas type, correction factor
  and concentration
• Field-interchangeable battery pack
  Replaced in seconds without tools
• Integrated flashlight
  Better view in dark conditions
• User-friendly screens, including dataplot chart view
• Integrated RAE Systems Correction Factors list for more than 200 compounds
  Measures more chemicals than any other PID
• Multi-language support with 12 languages encoded
• Rugged housing withstands use in harsh environments
  - IP67 waterproof design for easy cleaning and
  decontamination in water
  - Strong protective removable rubber boot

Call 1-800-833-7958

RAE MiniRAE 3000 and ppbRAE 3000 Specifications
RAE MiniRAE 3000 User's Guide
RAE MiniRAE 3000 and ppbRAE 3000 Pocket Reference

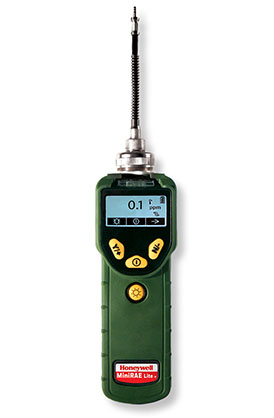

RAE MiniRAE Lite

The MiniRAE Lite is the most reliable handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector’s (PID) range of 0 to 5,000 ppm makes it an ideal instrument for applications ranging from environmental to construction.

• Proven PID technology
  The patented sensor provides the following unique features:
  - 3-second response time
  - Range up to 5,000 ppm
  - Humidity compensation
• Designed for service
  Easy access to lamp and sensor in seconds without tools
• Big graphic display for easy overview of concentration
• Field-interchangeable battery pack, replaceable in seconds without tools
• Integrated flashlight for better visibility in low light
• Multi-language support with 12 languages encoded
• Rugged housing withstands use in harsh environments
  - IP65 design
  - Strong, protective removable rubber boot

Call 1-800-833-7958

RAE MiniRAE Lite Specifications
RAE MiniRAE Lite User's Guide

RAE UltraRAE 3000

The UltraRAE 3000 is the most advanced compound-specific monitor on the market. Its photoionization detector’s (PID) extended range of 0.05 to 10,000 ppm in VOC mode and 50 ppb to 200 ppm in benzene-specific mode makes it an ideal instrument for applications from entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill response and refinery down-stream monitoring.

• Proven PID technology
  - 3-second response in VOC mode or 60 seconds in compound-specific mode
  - Extended range up to 10,000 ppm (in VOC mode) with improved linearity
  - Humidity compensation with built-in humidity sensor
  - Automatic temperature-controlled sampling time calculation
  - Detects benzene down to 50 ppb (0.05 ppm)
• Unique 15-minute benzene STEL calculation with 15-minute real-time benzene-specific measurement and recording
• Highly specific readings, combining a 9.8eV UV lamp and RAE-Sep™ benzene tube
• New sampling probe design provides instant tube-breakthrough visibility
• Large graphic display
• Multi-language support
• Easy access to lamp and sensor in seconds without tools

Call 1-800-833-7958

RAE UltraRAE 3000 Specifications
RAE UltraRAE 3000 User's Guide
RAE UltraRAE 3000 Basic Operation Pocket Reference

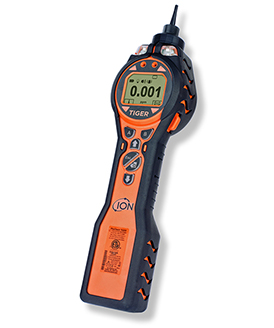

Ion Science PhoCheck Tiger

PhoCheck Tiger is the most advanced handheld photoionization detector (PID) with the widest measurement range on the market for volatile organic compounds (VOCs).

The PhoCheck Tiger is fully upgradeable with multiple functions from which to choose. The instrument can be used across a wide range of industries and applications including environmental, petrochemical, hazmat and confined space entry.

• Best Proven PID Performance. Ion Science's patented Fence Electrode Technology is independently verified as the best performing PID for fast response and accurate readings, minimal humidity and contamination effects. The instrument’s exceptional operation in high humidity environments is achieved without impairing other performance features.
• Dynamic Detection Range of 1 ppb to 20,000 ppm (gas dependant) offering the widest detection range available. Detect VOCs down to ultra low ppb toxic thresholds levels up to 20,000 ppm. Readings can be displayed as mg/m3 or ppm.
• Ready to Use Right Out of the Box with no complicated programming and set up procedures via a PC to perform basic functions.
• Long Life, Field Replaceable Li-ion Batteries with up to 30 hours of use between charges. Batteries can be replaced safely, even in hazardous environments. Fast battery charging allows the instrument to be fully charged in six hours. 8 hours of use can be achieved from a 1.5 hour charge. Dry cell battery options also available.
• Rapid Response in Less Than Two Seconds - the fastest on the market and as quick to clear down!
• Response Factors for Over 450 Gases. The instrument is pre-programmed with over 450 gas factors.

Call 1-800-833-7958

Ion Science PhoCheck Tiger Specifications
Ion Science PhoCheck Tiger User Manual

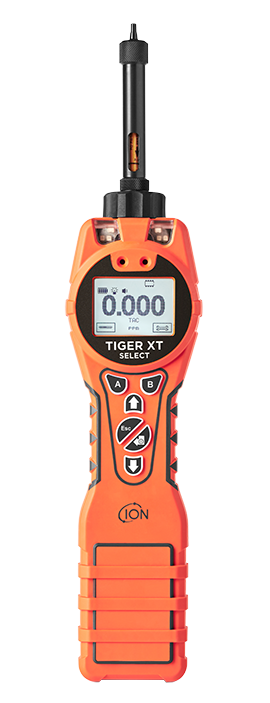

Ion Science Tiger Select

The revolutionary Tiger Select gives fast benzene specific, or Total Aromatic Compound (TAC) detection providing accurate, reliable data you can count on.

A hand-held detector, Tiger Select has two basic modes of operation, capable of detecting TACs without the tube
attachment, or benzene with the benzene-specific tube.

• Immediate results - no need to wait for readings
• Instant read-out on start-up
• Fast to detect Total Aromatic Compounds (TACs)
• Detects benzene in other compounds with selective Drager Tube
• Measures benzene without the need for a benzene-specific tube
• Detects down to ppb levels
• Continuous readings shown on display until max level is reached
• Independently verified as best performing PID technology
• Exceptionally easy-to-use and intuitive software
• Large, clear backlit display
• Simple soft key operation – even when wearing thick gloves
• Lightweight enabling easy one-handed operation
• Batteries certified to be changed within hazardous areas
• Battery life up to 30 hours
• Rugged design to withstand the harshest environments

Call 1-800-833-7958

Ion Science Tiger Select Specifications
Ion Science PhoCheck Tiger Select User Manual

Ion Science PhoCheck+

At the heart of the PhoCheck is a highly sensitive patent pending photoionization detector (PID) with a dynamic detection range capable of 1 ppb up to 10,000 ppm, making it the only sensor on the market able to detect Volatile Organic Compounds (VOCs) at their very low ppb toxic thresholds and lower explosive limits.

• Fully upgradable throughout the entire PhoCheck+ and FirstCheck+ ranges giving you ultimate flexibility in gas detection.
• 1 ppb-10,000 ppm for ultimate detection capability.
• Rapid response and recovery for faster detection.
• A choice of two viewing modes – large numbers or real-time graph.
• Unique “fence electrode” technology for humidity compensation.
• View stored readings graphically on-screen for an overview of results.
• Intrinsically safe for use in flammable areas.
• Data upload and download to a PC via IRDA for analysis with easy to use software.
• Health and Safety mode for STEL and TWA monitoring.

Call 1-800-833-7958

Ion Science PhoCheck+ Specifications
Ion Science PhoCheck+ 1, 2, 3, 5000Ex User Manual

RAE ToxiRAE Pro PID

The ToxiRAE Pro PID is the world's smallest wireless volatile organic compounds (VOC) monitor. The ToxiRAE Pro PID takes worker protection to the next level by providing safety professionals wireless access to real-time instrument readings and alarm status from any location for better visibility and faster response. Featuring RAE Systems' next-generation PID sensor, the ToxiRAE Pro PID can promptly detect and accurately monitor over 300 VOCs. With an onboard library of 190 correction factors, the ToxiRAE Pro PID can be programmed to automatically read in concentrations of the specified compound.

• World's smallest photoionization detector
• Wireless, wireless-capable, or non-wireless versions are available
• Wireless elevates worker protection to the next level
• Cutting-edge PID with 0.1 to 2,000 ppm range, 0.1 ppm resolution and 190 built-in correction factors
• Available in Industrial Hygiene (advanced) or Safety (basic) configurations
• Wireless access to real-time instrument readings and alarm status from any location
• Unmistakable five-way local and remote wireless notification of alarm conditions
• Reliable, rugged, and intrinsically safe
• Largest display in its class
• Continuous datalogging
• Fully automated bump testing and calibration with AutoRAE 2
• User-replaceable sensor, filter, fan, and Lithium-ion battery

Call 1-800-833-7958

RAE ToxiRAE Pro PID Specifications
RAE ToxiRAE Pro PID User's Guide
RAE ToxiRAE Pro PID QuickStart Guide
