EQUIPMENT & SUPPLIES


Ground Water Remediation – Total Fluid & Dissolved Phase Hydrocarbons

Pneumatic Remediation Pumps
Bottom Fill and Top Fill 1.66 Reclaimers
Bottom Fill and Top Fill 1.66 Reclaimers



Geotech 1.66 Reclaimer

The Reclaimer System is a positive air displacement pump designed for hydrocarbon recovery, leachate, and condensate in total fluids applications. Together with the PRS pneumatic controller, the systems are designed to withstand aggressive down-well environments, and highly corrosive fluids without material breakdown or failure.

  • Intrinsically safe design, and approved for
    hazardous environments
  • 2" or larger diameter wells
  • Ability to pump from 500'
  • Flow rates up to 3 gpm
  • Large intake and discharge ports
  • Corrosive resistant materials for less
    maintenance
  • Constructed of stainless steel
  • PRS Controller can be used in applications under 145 psi, consult Geotech for other controller options at higher psi
  • Optional Tankfull Shut-off, standard well caps,
    flanged well caps, and Pneumatic Cycle Counter

Geotech 1.66 Reclaimer Specifications
Geotech 1.66 Reclaimer Manual
Geotech 3.50 Reclaimer Bottom Fill
Geotech 3.50 Reclaimer Bottom Fill



Geotech 3.50 Reclaimer

The Reclaimer System is a positive air displacement pump designed for hydrocarbon recovery, leachate, and condensate in total fluids applications. Together with the PRS pneumatic controller, the systems are designed to withstand aggressive down-well environments, and highly corrosive fluids without material breakdown or failure.

  • Intrinsically safe design, and approved for
    hazardous environments
  • 4" or larger diameter wells
  • Ability to pump from 500'
  • Flow rates up to 10 gpm
  • Large intake and discharge ports
  • Corrosive resistant materials for less maintenance
  • Constructed of stainless steel
  • PRS Controller can be used in applications under 145 psi, consult Geotech for other controller options at higher psi
  • Optional Tankfull Shut-off, standard well caps,
    flanged well caps, and Pneumatic Cycle Counter

Geotech 3.50 Reclaimer Specifications
Geotech 3.50 Reclaimer Manual

Geotech 1.66 Auto-Reclaimer Dual Loading
Geotech 1.66 Auto-Reclaimer Dual Loading



Geotech 1.66 Auto-Reclaimer

The 1.66 Auto-Reclaimer is designed to pump floating hydrocarbons, leachate, and condensate in total fluids applications. The 1.66 Auto-Reclaimer is operated automatically, and needs no controller. Everything needed to operate the system is built into the pump. The design withstands the harshest and most corrosive environments such as refineries, landfills or mines.

  • Intrinsically safe design and approved for hazardous environments
  • 2" diameter wells
  • Ability to pump from 250'
  • Production rates up to 3 gpm
  • Can pump particles up to 1/16" diameter
  • Built-in positive valve shifting mechanism
  • Working pressures as low as 1 psi above head pressure
  • Stainless steel housing and corrosive resistant materials for less maintenance
  • Options include: Quick connect fittings, top or bottom loading configurations and dual loading configurations
  • Accessories include: Tankfull Shut-off, standard well caps, flange well caps, Pneumatic Cycle Counter, and bonded tubing packages

Geotech 1.66 Auto-Reclaimer Specifications
Geotech 1.66 Auto-Reclaimer Manual

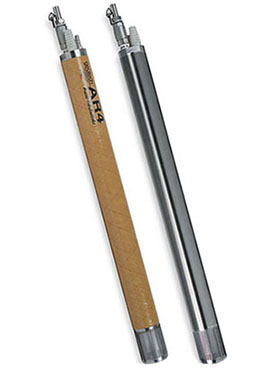

Standard Composite Housing and Stainless Steel Housing Versions
Standard Composite Housing and
Stainless Steel Housing Versions



Geotech 3.5 Auto-Reclaimer

The 3.5 Auto-Reclaimer is designed to pump floating hydrocarbons, leachate, and condensate in total fluids applications. The 3.5 Auto-Reclaimer is operated automatically, and needs no controller. Everything needed to operate the system is built into the pump. The design withstands the harshest and most corrosive environments such as landfills or mines.

  • Intrinsically safe design and approved for hazardous environments
  • 4" or larger diameter wells
  • Ability to pump from 500'
  • Production rates up to 15 gpm
  • Can pump particles up to 1/8" diameter
  • Built-in positive valve shifting mechanism
  • Optimal working pressures as low as 1 psi above head pressure
  • Standard light-weight composite housing, corrosive resistant stainless steel parts for less maintenance
  • Options include: Stainless steel housing, quick connect fittings and landfill intakes
  • Accessories include: Tankfull Shut-off, standard well caps, flange well caps, Pneumatic Cycle Counter, and bonded tubing packages

Geotech 3.5 Auto-Reclaimer Specifications
Geotech 3.5 Auto-Reclaimer Manual

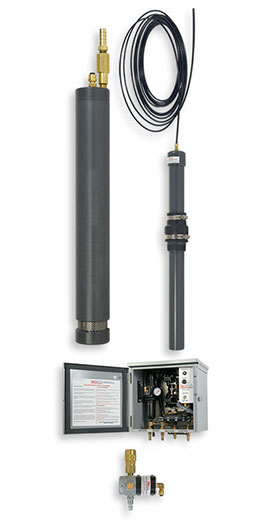

Keck TFS System


Keck TFS

The Keck TFS is a compact total fluids pumping system designed for shallow well and sump applications with up to 25 feet of suction lift. The pump, usually mounted at the well head, will provide from 0 to 4 gpm using from 2 to 6 cfm of air, depending on the suction lift, pumping rate and total discharge head.

  • Pumps a wide viscosity range of fluids
  • Variable speed pump
  • Can be mounted in sumps (12" minimum)
  • Automatic level controls are provided to regulate the operation of the pump
  • Pumps are available in a variety of sizes and configurations to pump nearly any fluid
  • Optional accessories:
    - Hose
    - Air compressor
    - Filters
    - Tankfull Shut-Off sensor
    - Well caps

Keck TFS Specifications
Keck TFS Manual
