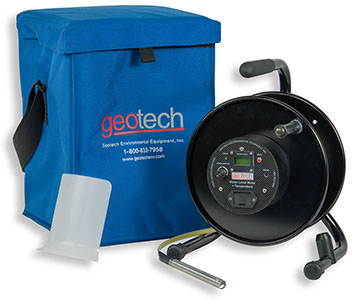

Geotech Portable Water Level Meters
+ Temperature

The Geotech Portable Water Level Meters + Temperature are designed to provide reliable and accurate measurements of groundwater levels and temperature. Readings are conveniently taken at the top of the casing with accuracy to within 1/100 of a foot and ± 1°F (temperature accuracy).

Features
Specifications
Downloads

Mounted on a lightweight steel and aluminum storage reel for easy transportation and durability in the field
Highly accurate HDPE coated steel tape marked in engineering or metric increments
Field replaceable 5/8" (1.59cm) probe with stainless steel conductors for durability
Adjustable sensitivity to prevent false triggering
Audible and visible alarms activated when the probe makes contact with water
Easily replaced 9 volt battery
Water resistant padded carrying case to protect instrument
Optional tape weight helps sink probe into a deep or crooked well

Size:
100'-500' Reel		15" H x 11.5" W x 10.5" D (38cm H x 29cm W x 27cm D)
750'-1000' Reel		15" H x 11.5" W x 14.5" D (38cm H x 29cm W x 37cm D)
Probe		5/8" O.D. x 6 1/8" L (1.59cm O.D. x 15.56cm L)

Length & Weight:
100' (30 m) 200' (60 m) 300' (100 m) 500' (150 m) 750' (225 m) 1000' (300 m)		14 lbs. (6.4 kg) 16 lbs. (7.3 kg) 18 lbs. (18.2 kg) 20 lbs. (9.1 kg) 24 lbs. (10.9 kg) 28 lbs. (12.7 kg)

Accuracy:
Tape Temperature Sensor		100th of a foot/100' (Per Federal Specification GGG-T-106E) ± 1°F (0.5°C)

Material:
Reel		Powder coated steel and aluminum
Tape		HDPE coated steel
Probe		Stainless Steel, Buna-N, Acetal

Power:		9 Volt DC alkaline battery

Alarm:		Audible and visual

Warranty:		1 year

Certifications:
