Handheld XRF Analyzers

The Bruker S1 TITAN and TRACER 5i are field portable analyzers based on energy dispersive X-ray fluorescence (EDXRF) technology and use X-ray tubes as their excitation source. When energized, the instruments generate low-energy X-rays.

The basis of X-ray fluorescence (XRF) spectrometry is the interaction of X-ray photons from a separate excitation source with atoms of the elements of interest found in the sample (filter deposit). When these excitation photons interact with the atoms in the sample, the photons cause the ejection of inner shell electrons. Outer shell electrons then fall into these vacancies. These transitions result in the emission of X-rays that are characteristic of the element. The energy of the characteristic X-ray is equal to the difference in the electron-binding energies of the two electron shells involved in the transition. Because the electron-binding energies are a function of the atomic number, the energy of the X-ray is characteristic of the element. The number or intensity of X-rays produced at a given energy provides a measure of the amount of the element present by comparisons with standards.

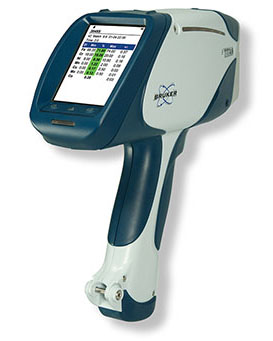

Bruker S1 TITAN Series Handheld XRF Analyzers

Bruker S1 TITAN Handheld XRF Analyzer

The S1 TITAN Series XRF Analyzers are designed to quickly and accurately report the elemental analysis of a sample. Whether to analyze large machined parts, children’s toys, or small jewelry, the S1 TITANs will deliver fast and accurate results. The ergonomic pistol grip and trigger are designed for all-day use. The color touchscreen LCD is easily seen in all lighting conditions. Weighing just 1.5 kg (3.3 lbs.), S1 TITANs are among the lightest tube-based XRF analyzers on the market.

Designed as “point and shoot” analyzers, S1 TITANs requires minimal setup and operator training. Equipped with both user-level and supervisor-level access, a manager can choose to grant basic operator control or full functionality. This two tier approach and intuitive interface make S1 TITANs perfect for both beginning users, as well as experienced users.

Geotech has been selected to be the exclusive representative for Bruker's handheld XRF products in CO, UT, WY, MT, ID.

Call 1.800.833.7958


Bruker S1 TITAN Specifications
Bruker S1 TITAN User Manual
Bruker S1 TITAN QuickStart
Bruker X-Ray Radiation Safety Manual

Periodic Table of Elements and X-ray Energies
S1 Titan PMI Reference
S1 Titan Scrap Recycling Reference
S1 Titan Mining and Exploration Reference
S1 Titan Precious Metal Alloy Reference

XRF Analyzer Safety Training


Safety Training for Tube Based and Sealed Source XRF Instruments   XRF Sealed Source DOT Training

Users of XRF systems must study the XRF Safety Training Presentation prior to renting or purchasing an XRF analyzer for the first time.

User knowledge base is gauged with XRF Safety Training Quiz. Upon passing, a Certificate of Safety Training will be issued.

Users of Sealed Source XRF analyzers must study the XRF DOT Training Presentation prior to renting or purchasing a Sealed Source XRF for the first time. Sealed Source XRF Analyzers require special shipping, handling procedures and labeling.


2711a NIST Standard Reference Material Certificate
2706 NIST Standard Reference Material Certificate
TILL Certificate of Analysis

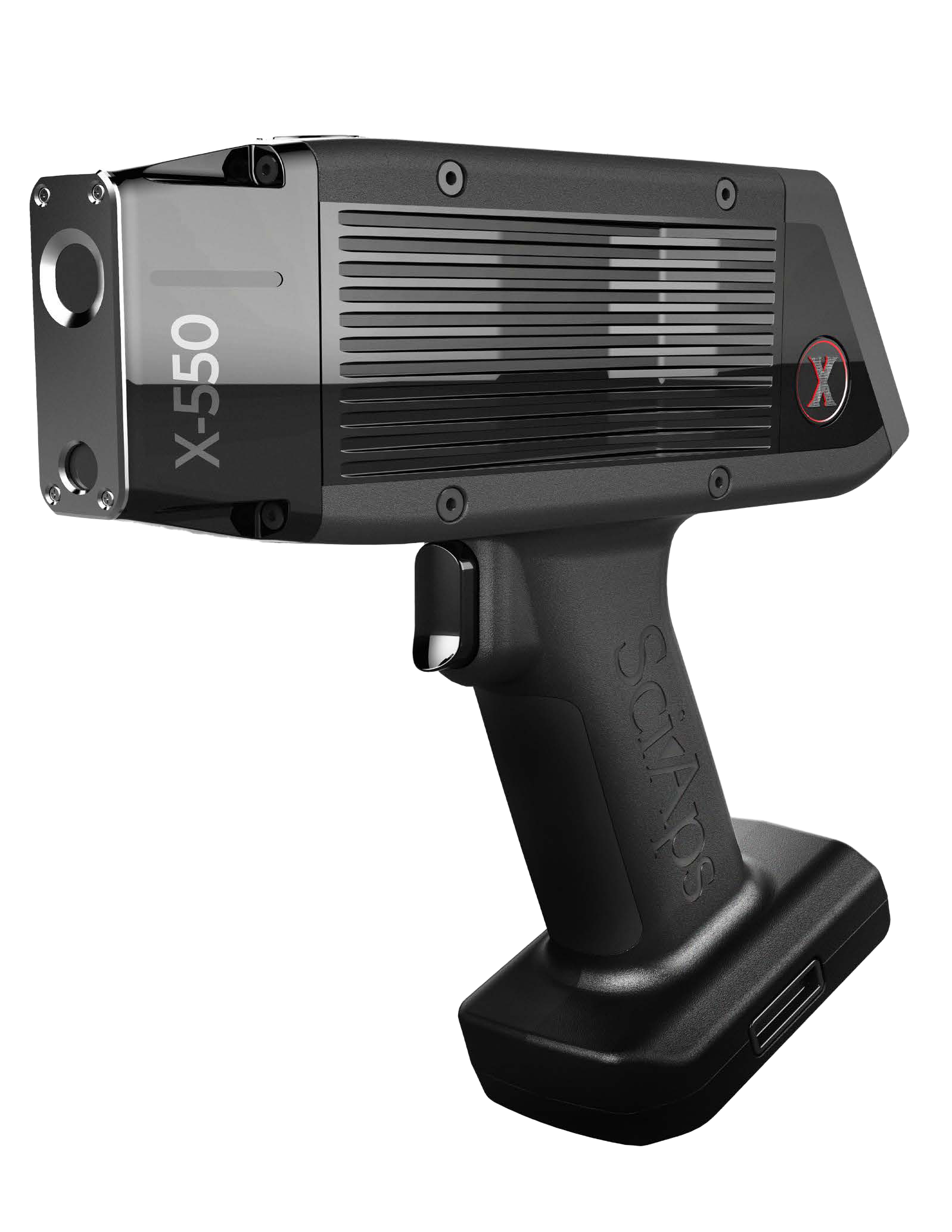

SciAps X-550


Bruker TRACER 5i Handheld XRF Analyzer

With its compact size, lightning-fast speed, and unmatched precision, the X-550 is the perfect tool for NDT and PMI users who need to access difficult-to-reach test locations and welds. Featuring a powerful, miniaturized X-ray tube, this device excels at measuring low atomic number elements such as Si, P, S, Mg, and Al. With its highly optimized internal geometry, the X-550 provides fast and precise results for challenging applications like measuring silicon for sulfidic corrosion and low magnesium in aluminum alloys.

Geotech is authorized to represent SciAps’ 550 XRF products in TN, GA, FL, AL (except area code 251) TX, OK, NM, IL, MO, KS, IA, CO, WY, MT, UT, ND, SD, WI, NE, NC, SC, VA, DC, and Southern CA area codes 661, 805, 820, 760, 442 and South.



Call 1.800.833.7958


SciAps X-550 Specifications
SciAps 500, 550 User Manual

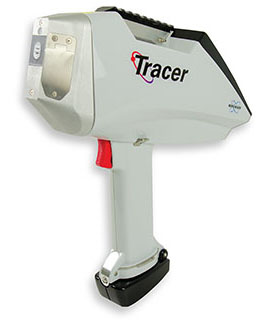

Bruker TRACER 5i
Handheld XRF Analyzer

Bruker TRACER 5i Handheld XRF Analyzer

Bruker’s TRACER 5i synchronizes power, function, precision and accuracy to provide dynamic, field capable elemental analysis from everyday point-and-shoot testing to the ever-changing challenges and complexities of advanced applications and research.

The TRACER 5i has the ability to use an air, vacuum or helium beam path and to interactively control power, filters, collimators and atmosphere, along with comprehensive data analysis capabilities to provide the ultimate in on-site interaction for faster analysis at lower LODs — especially for light elements like sodium. The analytical software for complex materials are part of the TRACER's comprehensive software features, but has a more streamlined workflow with EasyCal software to provide simple correlation fits for standard materials.

Geotech has been selected to be the exclusive representative for Bruker's handheld XRF products in CO, UT, WY, MT, ID.

Call 1.800.833.7958


Bruker TRACER 5i Specifications
Bruker TRACER 5 User Manual
Bruker TRACER 5i QuickStart
Bruker X-Ray Radiation Safety Manual

Periodic Table of Elements and X-ray Energies
Art and Archaeometry Reference

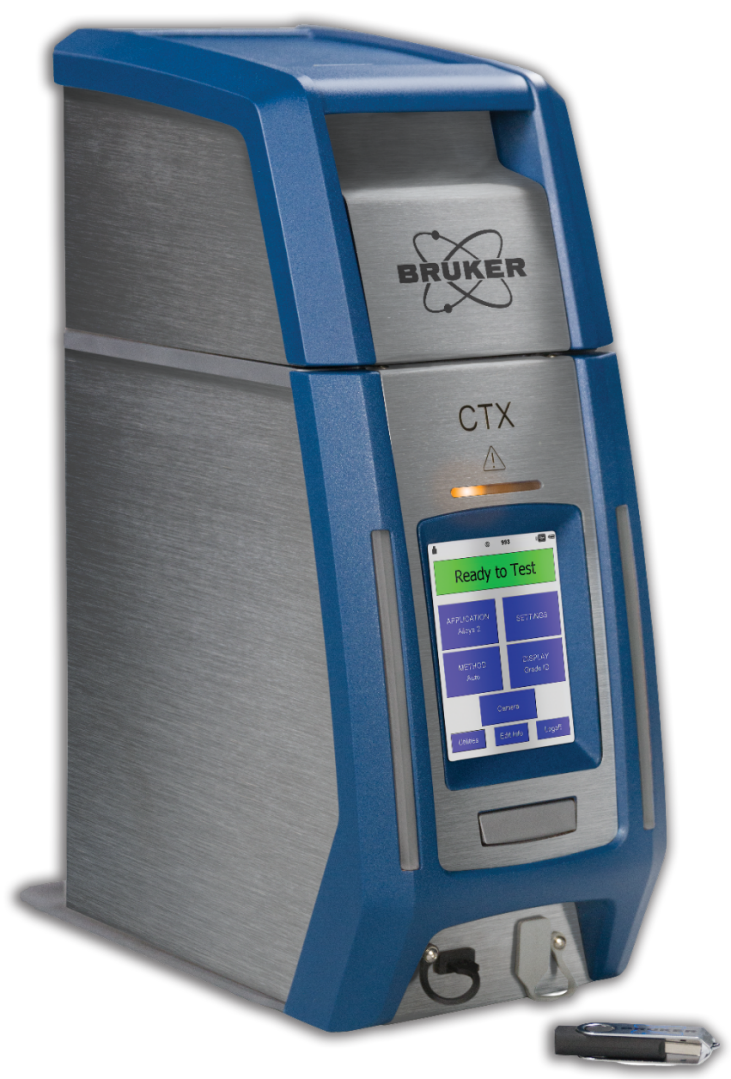

Bruker CTX Portable Benchtop XRF Analyzer for Elemental Analysis

Bruker TRACER 5i Handheld XRF Analyzer

The CTX portable benchtop spectrometer is based on the principle of energy dispersive X-ray fluorescence (EDXRF) to detect a broad range from elements as light as magnesium (Mg) to those as heavy as uranium (U). It is ideal for quick and non-destructive analysis of small or prepared samples, i.e. solids, powders and liquids, and wherever fast and accurate testing is needed outside the lab. It delivers precise and reproducible results with speed and ease.

The CTX is lightweight and portable while providing high performance and minimal setup or training. The touchscreen user interface is intuitive and data management is easy to use. It is durible and designed for all environments including humid and dusty conditions. IT has a splash proof stainless steel body that is easy to clean.

Geotech has been selected to be the exclusive representative for Bruker's handheld XRF products in CO, UT, WY, MT, ID.

Call 1.800.833.7958


Bruker CTX Specifications
Bruker CTX User Manual
Bruker X-Ray Radiation Safety Manual

Periodic Table of Elements and X-ray Energies
Used Oil Analysis
Sample Preparation of Plant Samples
Fuel Oil Screening of Sulfur
Analysis for Soil and Crop Management

SciAps X-550 Pb


Bruker TRACER 5i Handheld XRF Analyzer

X-550 Pb employs an X-ray tube that uses an electric current under high voltage to produce X-rays. The latest X-ray tube and detector technology deliver the fastest and most accurate lead paint results. The X-ray eliminates radioactive isotopes which lowers costs and potential regulatory limitations. Multiple tube options are avilable to meet industry standards and the needs of your project.

Geotech is authorized to represent SciAps’ 550 XRF products in TN, GA, FL, AL (except area code 251) TX, OK, NM, IL, MO, KS, IA, CO, WY, MT, UT, ND, SD, WI, NE, NC, SC, VA, DC, and Southern CA area codes 661, 805, 820, 760, 442 and South.



Call 1.800.833.7958


SciAps X-550Pb Specifications
SciAps X-550Pb Manual
Introduction to SciAps X-550Pb Video

Performance Characteristics Sheet 0.5
Performance Characteristics Sheet 0.7
Performance Characteristics Sheet 1.0
