Groundwater Remediation Equipment

Total Fluids Pumps, Pneumatic

Geotech Reclaimers
Positive displacement pumps for hydrocarbon recovery, leachate and condensate. 1.66" (4.22cm) and 3.5" (8.9cm) diameter sizes. Top fill, bottom fill or top/bottom fill designs. Withstands harsh well environments and corrosive liquids. Intrinsically safe and approved for hazardous environments. Use the PRS pneumatic controller.
Geotech 1.66 Reclaimer Specifications
Geotech 1.66 Reclaimer Manual
Geotech 3.50 Reclaimer Specifications
Geotech 3.50 Reclaimer Manual

Call 1-800-833-7958

Geotech Auto-Reclaimers
Positive displacement pumps for hydrocarbon recovery, leachate and condensate. Operates automatically without a controller. 1.66" and 3.5" diameter sizes. Top fill, bottom fill or top/bottom fill designs. Withstands harsh well environments and corrosive liquids. Intrinsically safe and approved for hazardous environments.
Geotech 1.66 Auto-Reclaimer Specifications
Geotech 1.66 Auto-Reclaimer Manual
Geotech 3.5 Auto-Reclaimer Specifications
Geotech 3.5 Auto-Reclaimer Manual

Call 1-800-833-7958

Total Fluids Pumps, Electric

Grundfos Redi-Flo3
Versatile pump for tests, remediation, leachate extraction, total fluids recovery, transfer and sampling. Change in-well pump performance at the surface with the optional CU300 and R100 remote.
Grundfos Redi-Flo3 Specifications
Grundfos Redi-Flo3 Installation and Operating Instruct

Call 1-800-833-7958

Grundfos CU 300 Status Box
with R100 Infrared Remote
Status box and remote at the surface allows you to communicate with the Redi-Flo3’s integrated electronics through the standard power leads. This provides the direct use of multiple sensors, digital input and relays without extra electronics. Status readout and parameter changes can be performed at the surface with the R100.
Grundfos CU 300 & R100 Information
Grundfos CU 300 Status Box Installation and Operating Instructions

Call 1-800-833-7958

Total Fluids/Dissolved Phase,
Air Stripping Groundwater Treatment Systems

Geotech LO-PRO™ II & LO-PRO™ III Air Strippers
Easy to install and maintain, these self-contained units take up minimal floor and head space. 10 hp, 5 tray system and can accommodate up to 60 GPM with up to 99.9% efficiency removing volatile organic compounds from water.
Geotech LO-PRO Specifications
Geotech LO-PRO II Manual
Geotech LO-PRO III Manual

Call 1-800-833-7958

Geotech SpOILer System

Geotech PRS System
with PRS Control Panel

Geotech Gas Guzzler System

Free Phase Remediation,
Pneumatic Skimmers

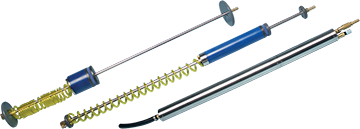

Geotech SpOILer Controllerless Recovery System (CRS)
“Controllerless” remediation systems that are easy to install and operate, only two lines to connect. Recovers floating hydrocarbons from 2" (5cm) and larger wells with an internally regulated pneumatic bladder pump combined with a floating skimmer attachment. Available in 2" (5cm) and 4" (10cm) diameter sizes, tubing is sold separately.
Geotech SpOILer Specifications
Geotech SpOILer Manual

Call 1-800-833-7958

Geotech PRS (Product Recovery System)
Product recovery system that incorporates a pneumatic control panel with a downwell stainless steel pneumatic bladder pump coupled with a unique floating skimmer attachment. Optional pneumatic Tankfull Shut-Off Sensor, with indicator and manual reset included. Designed for field portability and rapid installation. 2" (5cm) and 4" (10cm) diameter sizes available.
Geotech PRS Specifications
Geotech PRS Manual

Call 1-800-833-7958

Geotech PRS (Product Recovery System)
Pneumatic Control Panel
Pneumatic controller allows you to operate Geotech PRS systems, Reclaimer pumps and other pneumatic remediation pumps. Operates up to 4 PRS pumps. Requires no power source.
Geotech PRS Control Panel Specifications
Geotech PRS Control Panel Manual

Call 1-800-833-7958

Geotech Gas Guzzler System
Easy-to-install product recovery systems designed for shallow well recovery with up to 25' (7.6m) of suction lift. The pump is at the well head or in a 12” (30.5cm) minimum sump and will deliver approximately 0-4 GPM (0-15 LPM) while using 2-6 cfm (.06-.17 cmm) of air, depending on suction lift, pumping rate, and total discharge. Can accommodate more viscous products. Available in two diameter sizes, 2" (5cm) and 4" (10cm).
Geotech Gas Guzzler System Specifications
Geotech Gas Guzzler Manual

Call 1-800-833-7958

Geotech Large Diameter Filter Scavenger

Geotech Small Diameter Filter Scavenger
Geotech Small Diameter Probe Scavenger

Geotech Solar Sipper

Free Phase Remediation, Electric

Geotech Large Diameter Filter Scavenger
A high efficiency product recovery system capable of recovering Light Non-Aqueous Phase Liquids from water. Used in open environments such as manholes, ponds, trenches, open lagoons or large diameter wells to 20' (6m) deep. Self contained system for emergency response or long term remediation. Available in 115V or 230V configurations.
Geotech Large Diameter Filter Scavenger Specifications
Geotech Large Diameter Filter Scavenger Manual

Call 1-800-833-7958

Geotech Shallow Well Probe Scavenger
Portable surface mounted system for high rate recovery of free phase hydrocarbon layers. For wells 2" (5cm) diameter or larger and water less than 20' (6m) deep. Incorporates a highly effective suction lift pump, discriminating level sensor and an explosion-proof control panel for hazardous environments.
Geotech Shallow Well Probe Scavenger Specifications
Geotech Shallow Well Probe Scavenger Manual

Call 1-800-833-7958

Geotech Small Diameter Filter Scavenger
A water-free hydrocarbon recovery system for recovering a wide range of floating hydrocarbons from ground water. More efficient than total fluids or dual phase extraction. Portable and fully automated, can be operated either alone or with a water table depression pump.
Geotech Small Diameter Filter Scavenger Specifications
Geotech Small Diameter Filter Scavenger Manual

Call 1-800-833-7958

Geotech Small Diameter Probe Scavenger
Recovers a wide range of floating hydrocarbons from shallow and deep wells. Recovers to depths of 100' (30m) and LNAPL product. Operates alone or with a water table depression pump in wells as small as 4" (10cm) in diameter. Reliable around-the-clock operation in automatic mode, sensor technology provides water-free product recovery.
Geotech Small Diameter Probe Scavenger Specifications
Geotech Small Diameter Probe Scavenger Manual

Call 1-800-833-7958

Call 1-800-833-7958

Vapor Phase Remediation

Geotech Soil Vapor Extraction (SVE) Systems
Compact, durable design. Skid mounted blower systems available as 1.5hp, 2hp, 3hp, 5hp and 10hp systems. Fully automatic continuous reliable operation. Ideal for well point or trench type vapor barriers. Systems include 37 gal. (140 liters) knock-out drum, Hi Water level switch and Hi Vacuum switch controls.
Geotech SVE Systems Specifications
Geotech SVE Systems Manual

Call 1-800-833-7958
