Geotech 1.66 Reclaimer
The Reclaimer System is a positive air displacement pump designed for hydrocarbon recovery, leachate, condensate and total fluids applications. The pumps are designed to withstand aggressive down-well environments, and highly corrosive fluids without material breakdown or failure.
- Intrinsically safe design
- Manufactured from corrosive resistant materials
- 2" (5 cm) or larger diameter wells
- Ability to pump from 500' (152 m)
- Flow rates up to 3 GPM (11.4 LPM)
- Large intake and discharge ports
- Constructed of stainless steel and PTFE
- Available in PFAS-Free Models
- Optional controllers, tubing, well caps and screened intake assemblies
| 1.66 Reclaimer Models |
Dimensions - in. (cm) | Weight lbs. (kg) |
Volume/Cycle gallons (liters) | Maximum Flow Rate GPM (LPM) |
 |
||
| A | B | C | |||||
| 24" Top Fill | 24 (61) | 0 | 30.25 (76.8) | 4.0 (1.8) | 0.1 (.4) | 2 (7.6) | |
| 24" Bottom Fill (No Screen) |
24 (61) | 0 | 27.25 (69.2) | 4.0 (1.8) | 0.1 (.4) | 2 (7.6) | |
| 24" Bottom Fill (Flat Screen) |
24 (61) | 0.25 (.6) | 27.5 (69.8) | 4.5 (2) | 0.1 (.4) | 2 (7.6) | |
| 24" Bottom Fill (2" Screen) |
24 (61) | 2 (5) | 29.25 (74.3) | 5.0 (2.3) | 0.1 (.4) | 2 (7.6) | |
| 24" Top & Bottom Fill (No Screen) | 24 (61) | 0 | 30.25 (76.8) | 4.0 (1.8) | 0.1 (.4) | 2 (7.6) | |
| 24" Top & Bottom Fill (Flat Screen) | 24 (61) | 0.25 (.6) | 30.5 (77.5) | 4.5 (2) | 0.1 (.4) | 2 (7.6) | |
| 24" Top & Bottom Fill (2" Screen) | 24 (61) | 2 (5) | 32.25 (81.9) | 5.0 (2.3) | 0.1 (.4) | 2 (7.6) | |
| 36" Top Fill | 36 (91) | 0 | 42.25 (107.3) | 5.4 (2.4) | 0.2 (.8) | 2.4 (9) | |
| 36" Bottom Fill (No Screen) |
36 (91) | 0 | 39.25 (99.7) | 5.4 (2.4) | 0.2 (.8) | 2.4 (9) | |
| 36" Bottom Fill (Flat Screen) |
36 (91) | 0.25 (.6) | 39.5 (100.3) | 5.9 (2.7) | 0.2 (.8) | 2.4 (9) | |
| 36" Bottom Fill (2" Screen) |
36 (91) | 2 (5) | 41.25 (104.8) | 6.4 (2.9) | 0.2 (.8) | 2.4 (9) | |
| 36" Top & Bottom Fill (No Screen) | 36 (91) | 0 | 42.25 (107.3) | 5.4 (2.4) | 0.2 (.8) | 2.4 (9) | |
| 36" Top & Bottom Fill (Flat Screen) | 36 (91) | 0.25 (.6) | 42.5 (107.9) | 5.9 (2.7) | 0.2 (.8) | 2.4 (9) | |
| 36" Top & Bottom Fill (2" Screen) | 36 (91) | 2 (5) | 44.25 (112.4) | 6.4 (2.9) | 0.2 (.8) | 2.4 (9) | |
| 48" Top Fill | 48 (122) | 0 | 54.25 (137.8) | 7.8 (3.5) | 0.4 (1.5) | 3 (11.4) | |
| 48" Bottom Fill (No Screen) |
48 (122) | 0 | 51.25 (130.2) | 7.8 (3.5) | 0.4 (1.5) | 3 (11.4) | |
| 48" Bottom Fill (Flat Screen) |
48 (122) | 0.25 (.6) | 51.5 (130.8) | 8.3 (3.8) | 0.4 (1.5) | 3 (11.4) | |
| 48" Bottom Fill (2" Screen) |
48 (122) | 2 (5) | 53.25 (135.2) | 8.8 (4.0) | 0.4 (1.5) | 3 (11.4) | |
| 48" Top & Bottom Fill (No Screen) | 48 (122) | 0 | 54.25 (137.8) | 7.8 (3.5) | 0.4 (1.5) | 3 (11.4) | |
| 48" Top & Bottom Fill (Flat Screen) | 48 (122) | 0.25 (.6) | 54.5 (138.4) | 8.3 (3.8) | 0.4 (1.5) | 3 (11.4) | |
| 48" Top & Bottom Fill (2" Screen) | 48 (122) | 2 (5) | 56.25 (142.9) | 8.8 (4.0) | 0.4 (1.5) | 3 (11.4) | |

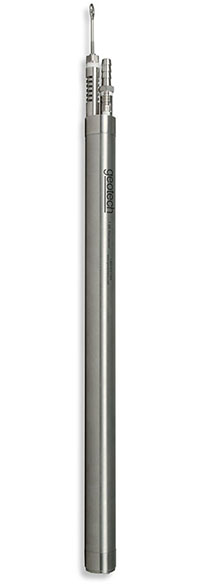

24" (61 cm) Dual Fill with Flat Screen

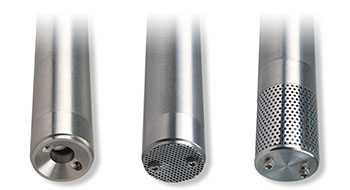

Optional Screened Intakes
| Bottom Fill with No Screen |
Bottom Fill with Flat Screen |
Bottom Fill with 2" (5cm) Screen |
