Soil Sampling Equipment

Soil sampling is performed for a number of reasons. These include determination of soil contamination, identifying the horizontal and vertical extent of contamination and investigating the relationship between soil and ground water contamination. Soil can be sampled at the surface or below surface depending on the type of information required. Soil is typically divided by depth into two categories: surface and subsurface. Surface soils include the zone between ground level and 24 inches. Subsurface soils include any depth below 24 inches (please note that for radiological sampling, surface soils are considered to be in the top 6 inches, or 15 centimeters only). There are several different types of samplers that can be used to collect a soil sample at any depth.

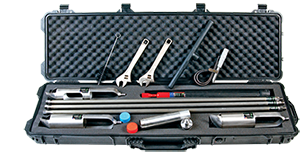

Soil Sampling Kits AMS Basic Soil Sampling Kit

Soil sampling kits are designed to provide all the items needed for sampling in convenient carrying cases. Used by soil scientists, agronomists, and construction companies for site investigations. Available in different auger sizes and connections.

View Product Choices


Soil Moisture Measurements Stevens GroPoint Probe

Stevens GroPoint Soil Moisture Probes

Stevens GroPoint Probes simplify volumetric soil moisture content measurements across multiple depths using a single probe. Designed for vertical installations, the probe is available with multiple sensor segments (each 15 cm long). GroPoint provides true soil profiling quantification, measuring the average moisture content across the entire length of each segment. This unique technology allows monitoring of water movement through the soil continuously, rather than at discrete sensor depths. These sensors are designed to install quickly with minimal soil disruption using an insertion pilot rod and slide hammer tool.

  • Lightweight and sleek design
  • Low power operation – suitable for dedicated applications
  • One SDI-12 address used to read all segments (optional RS-485)
  • Patented TDT technology for scientific-grade accuracy and stability
  • User-calibrated moisture readings using 3rd-order polynomials
  • Fully potted electronics for excellent durability
  • Configure with or without temperature – temp sensors placed
    every 1 or 2 segments

Call 1.800.833.7958


Stevens GroPoint Soil Moisture Probes Specifications
GroPoint Soil Moisture Probes Manual

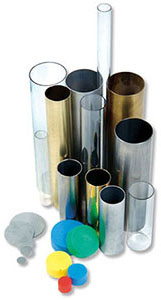

Soil Sampling Supplies Core Catcher SleeveFluoropolymer Sheets and Roll

Fluoropolymer Film, Retaining Cylinders and Caps



Direct Push Soil Liners
Clear liners for environmental soil sampling requirements.

Soil Sampling Supplies
Retaining Cylinders, Caps, Inserts &
Fluoropolymer Film


View Product Choices



AMS Gas Probe in the FieldZipliner in the Field

Portable Radon Detectors Durridge RAD7

Durridge RAD7 Radon Detector

The Durridge RAD7 is a portable detector that measures radon and thoron concentrations in water, soil, and air. Commonly used for vapor intrusion entry points and gushers, RAD7 can also be used to investigate soil or groundwater contamination. The instrument is simple to use, offers preprogrammed setups for common tasks, and comes complete with a built-in air pump, rechargeable batteries, and wireless printer.

  • Fastest response and recovery times of any electronic monitor/sniffer on the market.
  • Measures EPA action level of 4 pCi/L in under two hours.
  • Recovers from radon highs in minutes – not hours.
  • Spectrum printout verifies correct operation of instrument in field.
  • Tamper-proof key-lock command secures RAD7 and assures uninterrupted testing.
  • Easily portable: weighs 9.6 pounds (4.35 kg).
  • Display, print, and download radon data in your choice of units.
  • Immunity to build-up of 210pb.
  • CAPTURE software for data retrieval and analysis.

Call 1.800.833.7958


Durridge RAD7 Specifications
Durridge RAD7 User Manual
Durridge RAD H2O User Manual
Durridge RAD AQUA User Manual

White Papers:
Radon Measurement In Sub-Slab Soil Vapor Using A Durridge RAD7
Rn as natural tracer for LNAPL recovery in a crude oil-contaminated aquifer
Using natural radon as a tracer of gasoline contamination
Using radon as environmental tracer for assessment of NAPL contamination

Soil
Gas Vapor & Groundwater Piezometer Kits
Soil Gas Vapor ProbeGroundwater Piezometer

Soil Gas Vapor Probe Kits
Ideal for monitoring and sampling hydrocarbon vapor in soil at spill sites, near underground storage tanks, and pipelines.

Groundwater Piezometer Kit
Installs a semi-permanent sampling point for shallow groundwater sampling investigations.

View Product Choices
