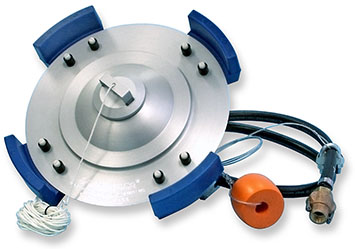

Geotech Gravity Feed Filter Scavenger

The Geotech Gravity Feed Filter Scavenger is a two piece housing designed to float an oil/water separator cartridge at the oil/water surface of a holding vessel. Once floated on the surface and its output hose is connected, it is ready to start recovering product.

• Features
• Operation
• Specifications
• Performance
• Downloads

• Requires no power
• Lightweight
• Low maintenance
• Screens available in 100 mesh or 60 mesh
• For hydrocarbons with specific gravity < 1.0
• For use with hydrocarbon viscosities 50 to 400 SSU

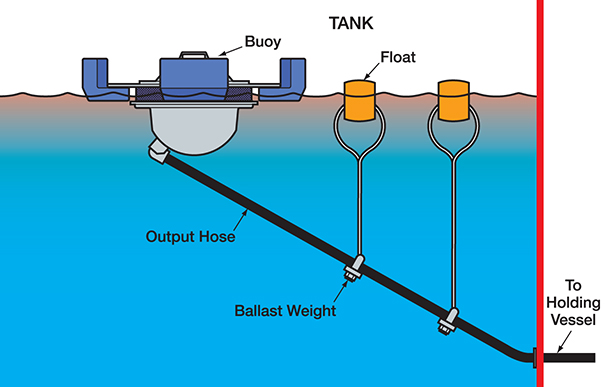

Geotech Gravity Feed Filter Scavenger Operation Diagram



Dimensions:		18.5" dia. x 10" high x 5" draft (47.4cm x 25.6cm x 12.8 cm)
Weight:		11 lbs. (5kg)

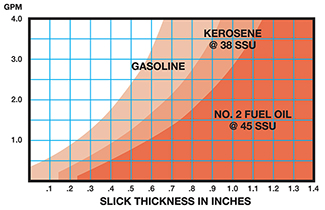

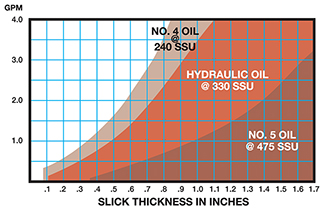

Recovery Rate Vs. Slick Thickness At Various Viscosities



Adobe® Reader® is required

> Specifications PDF

> Installation and Operation Manual

> Hydrocarbon Viscosity Test Kit User Manual
