Geotech Pressure Transducers

Geotech's submersible pressure transducers are designed for ruggedness and long life to meet the demanding environments encountered in liquid level measurement and control.

  • High static accuracy and repeatability
  • 100% computer tested and calibrated
  • Temperature compensated measurement
  • Signal outputs of 4-20 mA, 1-5 Volt output, and Modbus RS485
  • User specified pressure ranges from...
    – 100-1500 psi (7-100 bar) Sealed Gauge
    – 15-1500 psi (1-100 bar) Absolute
  • All wetted materials are #316 stainless steel
  • Designed to be intrinsically safe
  • Cable is premium quality, double-shielded, yellow polyurethane jacketed Tefzel®,
    or blue modified PVC blend
  • Sensor has ¼" NPT process fitting with protective cap
  • Optional surge suppressor for lightning protection
Maximum Ratings:
Supply Voltage   12-36 Volt DC
Supply Current   25 mA (self limited)
Output
  1-5 Volt DC, 4-20 mA, and Modbus 485

Performance:
Pressure Ranges (psi)

  0-15, 0-30, 0-50, 0-100, 0-150, 0-200, 0-350, 0-500, 0-1000, 0-1500
Pressure Ranges (bar)

  0-1, 0-2, 0-3.5, 0-7, 0-10, 0-14, 0-25, 0-35, 0-70, 0-100
(Custom ranges available)
Accuracy

  0.25% of full scale
0.1% of full scale available
Non-Linearity   .07% of full scale
Repeatability   0.015% of full scale
Pressure Hysteresis   0.010% of full scale
Zero Error   ±0.1% full scale
Span Error   ±0.1% of full scale
Temperature Sensor Range   -40° to 257°F (-40° to 125°C)*
Temperature Accuracy


  ±1.8°F (0.5°C) nominal full scale
Temperature reporting is only available with RS485 communications.
Compensated Temperature Range   -4° to 185°F (-20° to 85°C)
Operating Temperature Range   -40° to 257°F (-40° to 125°C)
Response Time   2 milliseconds
Life   1 million pressure cycles

Physical:
Sensor Length (Includes 2" Strain Relief)
With Surge Suppressor
Without Surge Suppressor

8.6" (21.8 cm)
7.7" (19.6 cm)
Sensor Diameter   .72" (1.8 cm)
Sensor Weight   4.3 oz. (122 g)
Proof Pressure   3x psi
Burst Pressure   5x psi
Media Compatibility   Liquids or gasses compatible with 316 stainless steel

Cable:
Jacket
  Polyurethane or Tefzel® (vented), or PVC Blend (not vented)
Diameter   .335" to .360" (8.5mm to 9.14mm)
Conductors   4-24 AWG 7/32 tinned copper Red – White - Orange - Blue Polyurethane or Tefzel®
4-18 AWG 7/26 tinned copper Red – White - Orange - Blue PVC Blend
Drain   24 AWG 7/32 tinned copper bare Polyurethane or Tefzel®
20 AWG 7/28 tinned copper bare PVC Blend

* Installation is not recommended in environments where liquids freeze solid.
Note: Probe is protected from reverse polarity supply connection.
  • Groundwater Monitoring
  • Surface Water Monitoring
  • Well Monitoring
  • Wetland Studies
  • Remediation Pump Control
  • Landfill Pump Control
  • Fluid Level Control

Adobe® Reader® is required

> Specifications PDF

> Installation and Operation Manual

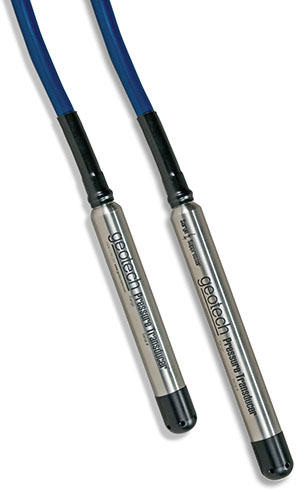

Geotech Pressure Transducers
Geotech Pressure Transducer (L)
Geotech Pressure Transducer with optional
Surge Suppressor (R)
