Geotech Single & Multi-Well Solar Sipper

Free-Phase Hydrocarbon Recovery System


The Geotech Solar Sipper is a solar powered remediation system, designed for remote applications where electrical power is either not available or not economically feasible. This uniquely flexible system can be configured for up to eight wells. The compact, easy to install features make this unit efficient to move and implement multiple wells.

The Solar Sipper uses a unique downwell pump to recover hydrocarbons through a floating oleophilic hydrophobic intake filter. Once the pump canister is filled via the vacuum cycle, the pump reverses, pressurizes the system and pumps the recovered fluid to the surface and into a storage vessel.

The Geotech Solar Sipper can effectively extract fluids from depths to 180 feet below ground surface and recover viscous hydrocarbons such as 90 weight oil when our heavy oil skimmer is utilized.



The Solar Sipper can reduce overall project costs and dramatically improve deployment:

  • Available in single or multi-well configurations
  • Reduces the time and cost for a power line to be run to a site.
  • Eliminates the need for electricians to do install work and permitting.
  • The simple and safe low voltage system can be installed without special training or licensing and requires minimal experience.
  • No trenching or transformer equipment is required.
  • Relocating equipment to follow a plume or to adjust to new site characterization information is fast and easy.

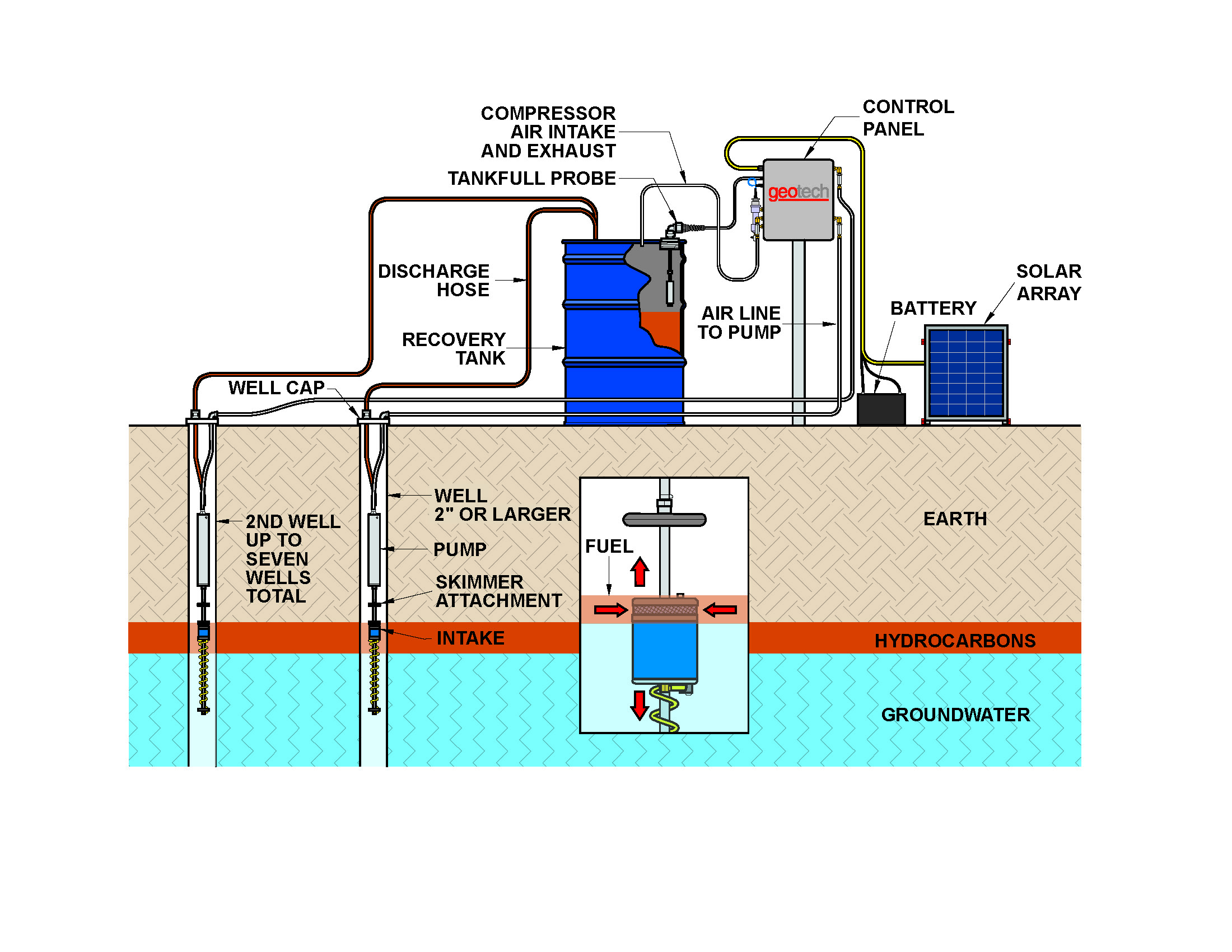

Solar Sipper Installation

The Geotech Solar Sipper recovers floating hydrocarbons (LNAPL) from wells using a solar powered pressure/vacuum pump. The standard Skimmer features a unique product intake assembly that incorporates both a density float and an oleophilic/hydrophobic filter that differentiates between floating hydrocarbons and water. The skimmer floats just above the oil/water interface to collect and remove hydrocarbons from the well into an optional above ground storage tank.

The Geotech Solar Sipper is also available for recovery of sinking product (DNAPL) from wells when using a fixed intake.



Applications:   2" (50 mm) or larger recovery wells
Recovery Rate:   .2 gallons (76 ml) per cycle
Maximum Operating Depth:
  180 feet (55m)
Power Requirements:

  12-15 Volts DC input @ up to 14.5 Amps
90~240 Watts continuous
Maximum Pressure:   100 PSIG (7 bar)
Maximum Vacuum:   20" Hg @ MSL (50mm Hg)
Oil ⁄ Water Separation:   Oleophilic/hydrophobic mesh screen
Controller:
Operating Temperature   32° to 104°F (0° to 40°C)
Storage Temperature Range   -20° to 150°F (-29° to 66°C)
Humidity   90% non-condensing (max.)
Size   10" D x 18" T x 16" W (25.4cm D x 45.7cm T x 40.6cm W)
Approximate Weight

  34 lbs. (15.4kg) single channel
49 lbs. (22.2 kg) eight channel
Rating   NEMA 3R
Optional Solar Panel w ⁄ Frame:
Rated Power   100 Watts (standard unit)
Operating Voltage   17.4 Volts DC
Maximum Voltage   21.5 Volts DC
Operating Amperage   4.88 Amps (standard unit)
Maximum Amperage   5.8 Amps
Size   43.31" H x 28.15" W x 3.15" (110 cm H x 71.5 cm W x 8 cm)
Approximate Weight   19.62 lbs. (8.9 kg)
Optional Downwell Pump:
Size   23.5" L x 1.75" OD (59.7cm L x 4.4cm OD)
Weight   4.5 lbs. (2.04 kg)
Materials
  303 and 304 Stainless Steel, Flexible Rubber Tubing, PVC, Brass
Optional Skimmer Assemblies:   2" Model 4" Model
Effective Travel Range   12" (30.5cm) 24" (61cm)
Size

  35.5" L x 1.75" OD
(90.2cm L x 4.4cm OD)
35.5" L x 3.75" OD
(90.2cm L x 9.5cm OD)
Weight   1.75 lbs. (.79 kg) 2.25 lbs. (1.02 kg)
Operating Temperature   32° to 104°F (0° to 40°C)
Storage Temperature   -20° to 150°F (-29° to 66°C)
Materials   304 Stainless Steel, Polyethylene, PVC, Polypropylene, Brass
Optional Tubing:
Air   .17" ID x .25" OD (4.3mm ID x 6mm OD)
Discharge
  .375" ID x .5" OD (9.5mm ID x 12.7mm OD)



Step 1: Control Panel
Choose from 1 to 8 wells

  • NEMA 3R Enclosure
  • Tankfull Shut-Off Switch (¾" or 2" NPT bung-fitting)
  • Microprocessor Controlled 2-Line LCD Display with four scroll buttons
  • On/Off Switch
  • Pressure/Vacuum Pump
  • Pressure/Vacuum Gauge



Step 2: Solar Accessories

  • 100 watt solar panel(s) with adjustable mounting frame
  • AGM Solar Batteries 104 AH, 12 Volt
  • AC powered versions are available



Step 3: Downwell Equipment

Downwell Pump(s)

  • Standard
  • With Conductivity Sensor



Skimmer(s)

  • 2" or 4" Skimmer with 100 or 60 Mesh Intake
  • 2" or 4" Protective Screen
  • 4" Skimmer with Extended Travel
  • 4" Heavy Oil Skimmer
  • 4" High Temperature/Heavy Oil Skimmer
  • 2" DNAPL Intake



Other Options:

  • 2" or 4" Slip Fit Well Cap(s)
  • Choose Length: Air and Discharge Tubing
  • 55 Gallon Steel Product Drum(s)
  • Tank Manifold: 2 to 8 Wells
  • Dual-Wall Containment Product Recovery Tank(s)
  • Lockable Weatherproof Enclosure
  • Trailer for Mounting Mobile System
  • SitePro with SiteView Telemetry

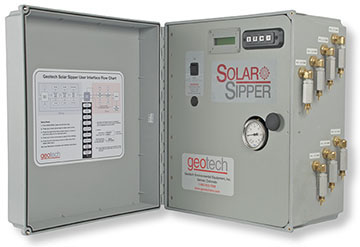

Solar Sipper Control Panel
Control Panel and Pressure/Vacuum Pump
(eight-well controller shown)

Solar PanelOptional Solar Panel
Downwell Pump, with 2" and 4" Skimmers
Downwell Pump, with 2" and 4" Skimmers
