Geotech SpOILer Controllerless Recovery System

The SpOILer Controllerless Recovery System (CRS) is an efficient product recovery system designed to recover floating hydrocarbons from 2" (5cm) and larger wells and sumps. The SpOILer utilizes an internally regulated pneumatic bladder pump combined with a floating skimmer attachment. This system tracks water level fluctuations in excess of 16" (41cm) with the 4" (10cm) skimmer while removing product to a sheen. This system is extremely flexible for use at a variety of sites, with skimmers available to recover product ranging from gasoline to gear oil over several available travel ranges.

  • No external controller required.
  • Has a field adjustable cycle timer to optimize cycle rates and conserve energy.
  • High efficiency, ultra low energy use.
  • Quick set-up; only two lines to connect.
  • Different sizes/types of skimmers can be used with the standard pump for varying site conditions, including screened skimmers for extra protection.
  • Optional oil-less air compressor.
Pump
Size:   30.75" L x 1.75" (4.5cm) O.D.
Weight:
  5.8 lbs. (2.6 kg)
Materials:   Stainless steel and engineered plastics
Discharge:   Synthetic rubber
Air Line & Sensor Line:   Polyethylene, Nylon-11
Operating Pressure:

  60 psig (4 bar) minimum
80-100 psig (5.5-7 bar) recommended
Maximum Pressure:   120 psig (8.3 bar)

Skimmer   2" Model 4" Model
Effective Travel Range:   12" (30cm) 16" (41cm)
Size:

With Optional Screen:

  35.5" L x 1.75" O.D.
(90cm L x 4.5cm O.D.)
35.5" L x 1.88" O.D.
(90cm L x 4.7cm O.D.)
35.5" L x 3.75" O.D.
(90cm L x 9.5cm O.D.)
35.5" L x 3.83" O.D.
(90cm L x 9.7cm O.D.)
Weight:
With Optional Screen:
  1.75 lbs. (.8 kg)
3.0 lbs. (1.4 kg)
2.25 lbs. (1 kg)
4.5 lbs. (2 kg)

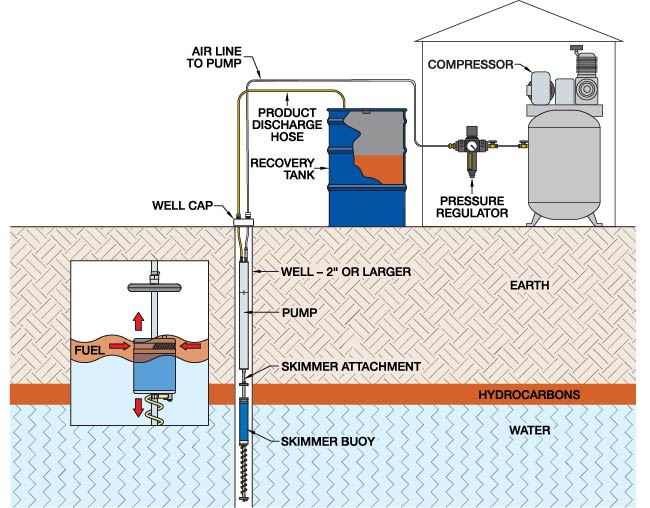

Typical SpOILer Installation
Typical SpOILer Installation

The Geotech SpOILer controllerless pump operates at the most efficient intake discharge cycles with minimum
air consumption.

The system is flexible for use at different sites, with skimmers available to recover product ranging from gasoline
to gear oil and several travel ranges available.

Adobe® Reader® is required

> Specifications PDF

> Installation and Operation Manual

> Geotech Hydrocarbon Viscosity Test Kit User Manual
   (test kit shown below)
Geotech Hydrocarbon Viscosity Test Kit

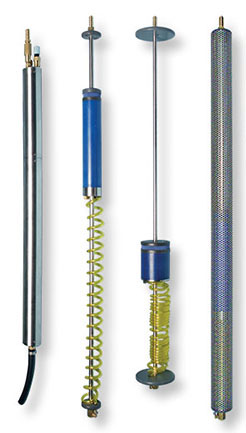

Geotech SpOILer System
Bladder Pump 2"
Skimmer
4"
Skimmer
Optional
2"
Screened Skimmer Assembly
