Leptron RDASS HD2
Unmanned Quadcopter
The RDASS HD2 is a commercial-grade unmanned aircraft system (UAS, or Drone) engineered for professionals. The RDASS features manual or autonomous flight modes, intelligent fault detection, and strong wind and sub-freezing temperature flight capability. The RDASS is configurable for multiple remote sensor payloads, night navigation lighting, first responder strobe, and additional video streaming options.
- Rapid Deployment
- Flight Autonomy
- Altitude Position Hold
- Point of Interest Orbit
- Live Video with Flight Data Touch Screen Display
- Multiple Remote Sensor and Camera Configurations
- Dual Battery Rapid Charging Station
- Weather Resistant
- Intelligent Fault Detection with Return Home
- Unprecedented U.S. Support
- Made in U.S.A.
| Platform Type Rotor Tip to Rotor Tip Dimensions Operating Temperature Take-off Weight Weight without Battery Hovering Accuracy (GPS Mode) Maximum Yaw Angular Velocity Maximum Tilt Angle Maximum Horizontal Flight Velocity Wind Limits Vertical Speed Limits Supported Flight Battery Operational Ceiling Maximum Payload Operational Range Maximum Power Consumption |
Multi-Rotor (four fixed-pitch rotors) 31 ½ inches (80.1 cm) -10°C – 50°C 7 lbs. 13 oz. (3539 g) 5 lbs. (2269 g) Vertical: ±31 in. (0.8 m) Horizontal: ±98 in. (2.5 m) 180°/s 35° 35 mph (30 knots, 15 m/s) 35 mph (30 knots, 15 m/s) continuous or gusts of 25 mph (22 knots, 11 m/s) 800 feet/min. (4.1 m/s) LiPo 6S 12,000 feet DA (3650 m) 1 lb. 8 oz. (680 g) 1.5 mile (2.4 km) 800 Watts (1.1 hp) |
|

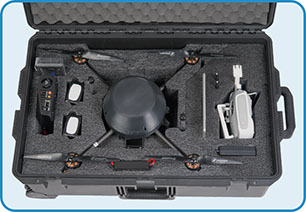

 Leptron RDASS HD2 Kit with iPad |
|
GS Pro – iPad app designed to plan automatic flights Navigation Lighting – Light ring to assist with visual orientation and position • Green – Aircraft Right • Red – Aircraft Left • White – Aircraft Tail Emergency Lighting – Blue & red strobe to signal that help is on the way |
  Navigation Lighting  Emergency Lighting |
| GoPro with Stabilized Gimbal – Eliminates tilt and vibration • Available with GoPro Hero4 Black, Hero5 Black, and Hero6 Black FLIR Duo Pro R with Stabilized Gimbal (not shown) – Combines high resolution, radiometric thermal imager, 4K color camera, and a full suite of on-board sensors for a powerful dual-sensor imaging solution • Available with FLIR Duo Pro R 336 x 256 or 640 x 512 30hz cameras Stabilized Gimbal with GoPro and FLIR Vue Pro – Incorporates a GoPro and FLIR VUE series thermal/IR camera with three-axis tuning • Available with FLIR Vue, FLIR Vue Pro, or FLIR Vue Pro R Sony Camera Gimbal – Designed for the Sony Alpha a6000 camera to provide a versatile and advanced aerial mapping and data collection camera • Available with RTK/PPK MicaSense RedEdge Camera with Gimbal – Multispectral camera for accurate multi-band data and agricultural remote sensing |
 Stabilized Gimbal with GoPro Hero4 Black  GoPro and FLIR Vue Pro with Stabilized Gimbal  Sony Alpha a6000 with Gimbal  MicaSense RedEdge Camera with Gimbal |
Adobe® Reader® is required
> Leptron RDASS HD2 Flight Manual
See what the RDASS™ can do
RDASS™ HD Overview:
The Leptron RDASS™ HD offers simplicity with a single case for the helicopter drone, video, spare batteries and charger. The system offers stunning HD video and the video is from an RDASS taking video of both an Avenger and an RDASS in the air.
RDASS™ HD Inspection & Mapping:
The Leptron RDASS HD is used at an Industrial facility for safety inspections, quarry blast viewing and topographic mapping. The system uses a full autopilot with GPS navigation and is operated with live HD video and HD still photos.

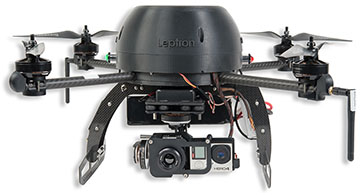

| Leptron RDASS HD2 with optional Stabilized Dual-Camera setup using FLIR VUE Pro and GoPro Hero4 cameras, and optional Navigation Lights |
