Geotech Geosub 2 Pump & Controller

This stainless steel sampling pump is the most versatile single stage DC pump in the industry. Designed with all stainless steel components, the Geosub 2 allows you to sample with confidence even in the harshest well conditions. The Geosub 2 operates with the Geotech Geosub 2 Controller.

The Geosub 2 Controller is designed specifically for use with Geotech's Geosub 2 Pump. It provides a safe conditioned variable DC output power from an AC power source. Built-in sensing gives the operator accurate and precise control over the pump during sampling events. An average 1000 Watt gasoline powered generator with 1 gallon of gasoline can operate the Geosub 2 Controller and Geosub 2 sampling pump at full power for up to 18 hours continuously (generally much longer runtimes can be expected as the controller is used to reduce water flow for low flow sampling).

Features
Specifications
Operation
Downloads

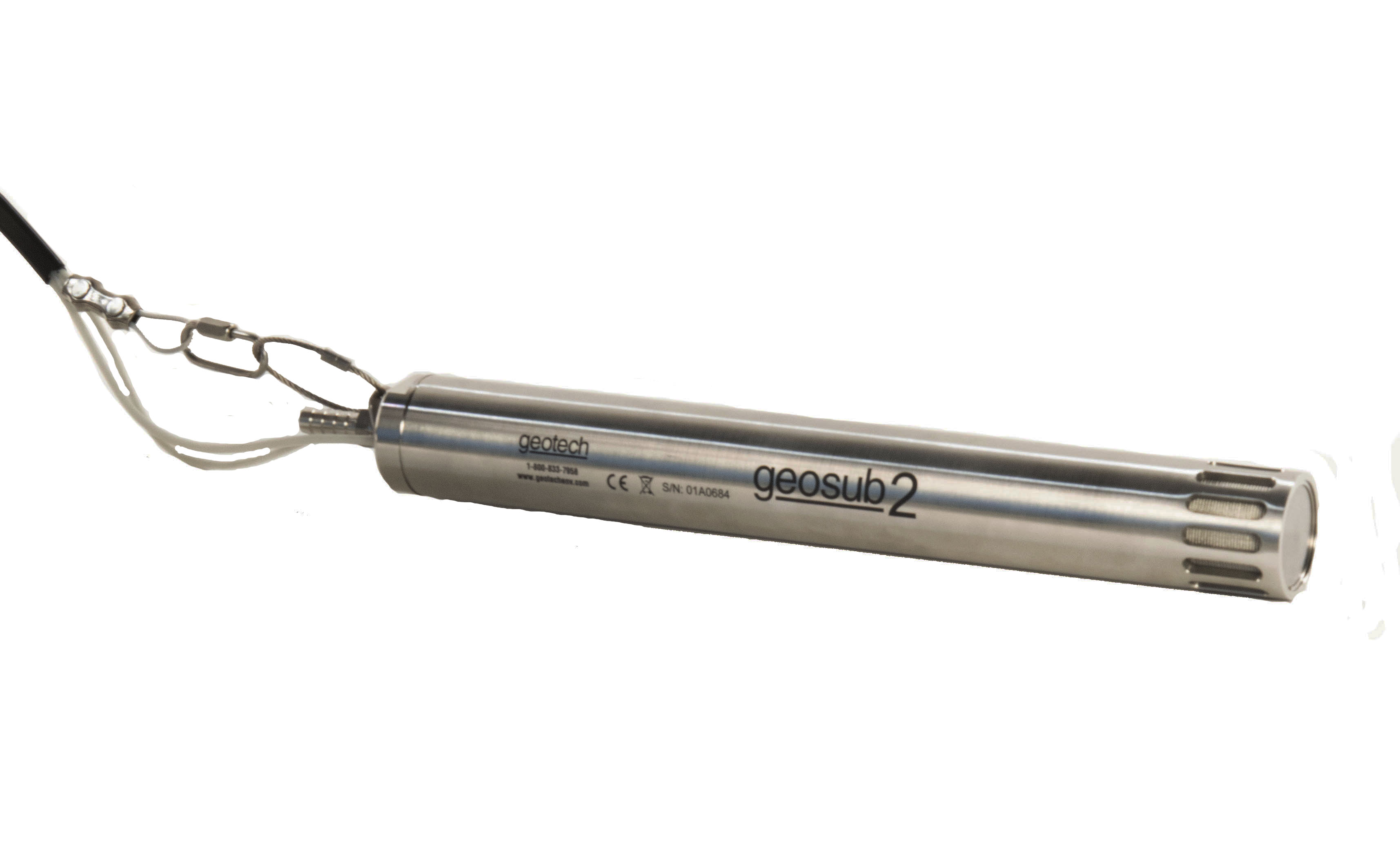

Geosub 2 Pump

Most versatile pump in the industry, sample from depths to 200 ft. (61m)
Low flow sampling rates to 10 mL/min
User enabled dry-run protection
Easy to decontaminate
Optional Drop Tube Assembly for greater depth
Field replaceable motor lead kits available
Portable reel systems or dedicated well systems available to meet your needs (optional)

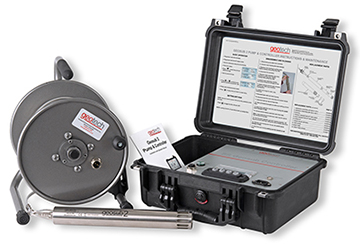

Geosub 2 Controller

Converts AC Voltage to variable up to 300 watt DC voltage output
Short circuit protection for your safety
Heavy duty rated power cable for years of service
2-line x 16-character wide temperature range alpha-numeric digital display
Push button Up/Down control
Internal processor saves individual well parameters

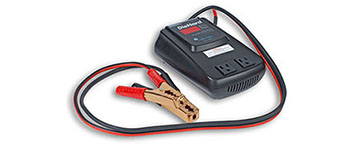

Optional DC to AC Inverter can be connected to a vehicle battery

Pump
Electric:
Full Load Rating Maximum Amp Draw Overload		2/3 HP 10 amps DC Incorporated into Geosub 2 Controller
Discharge Port Connection:		1/4" female NPT (includes 3/8" barb)
Operating Conditions:
Minimum Ambient Fluid Temperature Maximum Ambient Fluid Temperature		34°F (1°C) 176°F (80°C)
Wetted Parts:		316 Stainless steel, PEEK, HDPE
Dimensions & Weight (Pump & Motor):
Dimensions of Pump Net Weight of Pump w/o Lead		13.2" L x 1.75" OD (34cm L x 4.5cm OD) 4 lbs. (1.8 kg)

Cable
Material:		Two 12 gauge conductors with HDPE jacket, and integrated safety cable
Weight with Geo Reel & Safety Cable:
100' (30.5 m) of 12 AWG & Safety Cable 150' (45 m) of 12 AWG & Safety Cable 200' (61 m) of 12 AWG & Safety Cable		18.3 lbs. (8.3 kg) 21.6 lbs. (9.8 kg) 24.9 lbs. (11.3 kg)


Controller
Input Power Range:		100-130 Volts AC 50/60 HZ 310 Watts 4.2 amps nominal full load 115 Volts AC
		200-250 Volts AC 50/60 HZ 310 Watts 2.1 amps nominal full load 230 Volts AC
Output Power:		Variable 0-46V DC @ <300 Watts
Output Power @ Maximum Voltage:		10 amps maximum
Operating Temperature:		-20°F to 100°F (-29°C to 38°C) ambient air temp.
Humidity:		Up to 90% humidity
Weight of Unit:		16.45 lbs. (7.46 kg)
Size of Unit:		16" L x 13" W x 7" H (41cm L x 33cm W x 18cm H)
Input Protection:		5A CB

An easy-to-use programmable user interface with bright display offers precise control of flow rates during groundwater sampling events. Site specific settings and conditions can easily be stored and recalled for more efficient repeatable sampling events.

Rugged construction and easy to connect cables make setup and portability a breeze. In addition, the controller includes a user programmable dry run protection feature.

Adobe® Reader® is required

> Specifications PDF

> Installation and Operation Manual

> Quick Start Guide

> Geotech DC to AC Inverter Quick Start Guide
