The Geotech Large Diameter Dangle Scavenger is a unique separating and pumping system designed for the efficient recovery of hydrocarbon product from the surface water. The system is portable and is electrically safe for use in hazardous locations. The heart of the Dangle Scavenger is a floating oil/water separator which passes recovered oil to a suspended pump and control assembly. Actual separation of oil or other hydrocarbons from water is effected by a mesh screen located in the floating buoy assembly. This screen is specially treated to pass oil and repel water.
|Applications||Trenches, manholes, small bodies of water, and wells 24" (61.5 cm) in diameter or larger, with fluctuating water table levels.|
|Product Recovery Rate||Up to 4 gpm (15.4 lpm) @ 65 PSI (4.5 bar)|
|Operation Requirements||Custom applications|
for Buoy Assembly
|18.5" dia. x 10" high x 5" draft/11 lbs. (47.4cm x 25.6cm x 12.8 cm/5kg)|
|Power Requirements||115/230 VAC 50/60 HZ/600 Watts
|Oil/Water Separation||Oleophilic/hydrophobic filter membrane
|Base System||8.5" (47cm) diameter product collection buoy assembly with lid, 100 mesh cartridge for light oils, 20' (6m) of control cable and 12.5' (3.75m) of input hose, tankfull probe with 25' (8m) of cable, 20' (6m) of ¾" output hose, with grounding clip, explosion proof control panel with ¼ hp pump/motor, 115/230VAC 25' (8m) power cord with plug. It also includes a spare parts kit (fuses, lid spacers, Viton washer).|
|Options||Spare filter membrane (mesh size 60), spare filter membrane (mesh size 100), totalizer, aromatic duty system, winch assembly, and modification for deep wells.
Custom cable and hose lengths available (consult Geotech for application assistance).
|The Geotech Large Diameter Dangle Scavenger has a floating collection element or "buoy" designed to float precisely at the oil-water interface. This allows hydrocarbons to flow into a collection basin within the unit automatically. This unit is so effective that product layers can be reduced to a sheen.|
|Geotech Large Diameter Dangle Scavenger Set-up in Well|
When approximately one liter of hydrocarbons collects in the buoy base, a float switch is activated, turning the pump on. Thus, water-free product is automatically pumped into a recovery tank. A water sensing switch is also located within the buoy. Should water enter the buoy, a density switch is activated, shutting off the pump and activating an alarm light. This automatic feature prevents recovered hydrocarbons from being contaminated by water.

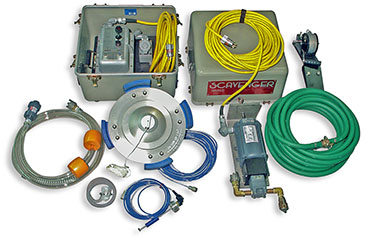

|Large Diameter Dangle Scavenger system with optional case|

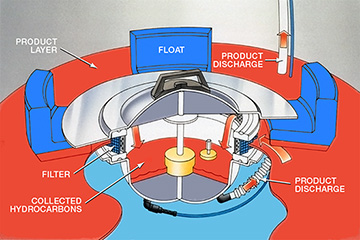

|Cut-away view of Buoy|
