Water Flow Measurement Meters

Flow measurement is the quantification of bulk fluid movement. Flow can be measured in a variety of ways. Positive-displacement flow meters accumulate a fixed volume
of fluid and then count the number of times the volume is filled to measure flow. Other flow measurement methods rely on forces produced by the flowing stream as it
overcomes a known constriction, to indirectly calculate flow. Flow may be measured by measuring the velocity of fluid over a known area.

Seametrics PE202 Magmeters

Seametrics PE202 Magmeter

The PE202 Magmeter is designed for measuring fluids in low-flow applications. With no moving parts, the PE202 can handle liquids containing particulates without clogging or jamming. It features a compact design that can be easily installed in small spaces. Made with a PVDF body and PVDF carbon fiber-filled electrode, the PE202 is corrosion resistant and compatible with a wide range of chemicals. Outputs and power are provided through a 20 foot cable with 8-pin female round connector.

Call 1.800.833.7958


Seametrics PE202 Magmeter Specifications
Seametrics PE202 Magmeter Instructions
Seametrics PE202 Magmeter Quick Start Guide
Seametrics FT400 Series Rate & Total Indicators
FT400 Series Rate/Total Indicator Instructions
Seametrics FT 500 Series Batch Flow Processor
FT500 Series Batch Flow Processor Instructions

Seametrics S-Series Low Flow Meters

Impeller Flowmeters

Seametrics SPX Low Flow Meter
Seametrics SPX Low Flow Meter

SPT and SPX low flow meters are an economical choice for measuring fluid flow rates. These versatile impeller flowmeters are available in multiple nominal female NPT thread sizes. They employ jewel bearings and Kynar rotor with tungsten carbide shaft to allow for very low flow rates and superior life expectancy.

Call 1.800.833.7958


Seametrics S-Series Low Flow Meter Specs
Seametrics S-Series Low Flow Meter Instructions
Seametrics S-Series Quick Start Guide

Pulsar PTFM 6.1

Portable Transit Time Flow Meter

Pulsar PTFM 6.1 Kit

Whether you need new flow measurement or to prove that existing systems are performing property, the PTFM 6.1 provides accurate, non-invasive flow measurement in the most challenging industrial environments and applications. With new and more powerful signal processing hardware, rugged IP67 design, and three interchangeable transducer sizes, the PTFM 6.1 is the right choice for on-the-go or long-term flow measurement applications.

Call 1.800.833.7958


Pulsar PTFM 6.1 Specifications
Pulsar PTFM 6.1 Instruction Manual
Pulsar PTFM 6.1 Engineering Specifications

Seametrics WMP-Series Flanged Flow Meters

Seametrics WMP 2 inch Flow Meter

WMP-Series flow meters are economical plastic bodied flanged magmeters making them light weight and easy to install. WMP meters are available for 1 inch, 2 inch, and 3 inch pipe, and feature electrodes resistant to fouling. The polypropylene flow tube offers corrosion resistance for a wide range of fluid characteristics. WMP require minimal straight pipe requirements allowing these meters to be used in configurations where there is little space between pipe bends. With an included display, select from battery operated or externally power options.

Call 1.800.833.7958


Seametrics WMP-Series Flanged Flow Meters Specifications
Seametrics WMP-Series Instructions
Seametrics WMP-Series Quick Start Guide

Seametrics MJ/MJH-Series
Pulse Flow Meters

Seametrics MJ/MJH-Series Pulse Flow Meter

MJ-Series meters use a multi-jet principle, which has been an internationally accepted standard for years. The MJ-Series impeller is centered between inlet and outlet jets. This design is known for its wide range, simplicity, and accuracy in low-quality fluids. Using a gear train drive, the registered dials provide totalized fluid flow.

Call 1.800.833.7958


Seametrics MJ/MJH-Series Pulse Flow Meters Specifications
Seametrics MJ/MJH-Series Instructions

Global Water FP111/FP211/FP311 Flow Probes

Digital Water Velocity Meter

Global Water FP111 Flow Probe
FP111 Flow Probe

Global Water Flow Probes are highly accurate water velocity instruments for measuring flow in open channels and partially filled pipes. The water velocity probe consists of a protected water turbo prop positive displacement sensor coupled to an expandable probe handle with a digital readout display. The water flow meter incorporates true velocity averaging for the most accurate flow measurements. Use for measuring flows in rivers and streams and monitoring velocity in ditches and canals.

Call 1.800.833.7958


Global Water FP111/FP211/FP311 Flow Probes Specifications
Global Water FP111/FP211/FP311 Flow Probes User's Manual

Seametrics iMAG 4700-Series Flanged Flow Meters

Seametrics iMAG 4700p Flanged Flow Meter

The iMAG-Series flow meters are reliable flanged flow instruments available for 2 inch to 12 inch inline pipe installations. They feature electrodes that are designed to discourage fouling. iMAG meters require minimal straight pipe requirements allowing these meters to be used in configurations where there is little space between pipe bends. Available in a battery only and AC/DC option, with a remote display configuration.

Call 1.800.833.7958


Seametrics iMAG 4700-Series Flanged Flow Meters Specifications
Seametrics iMAG 4700-Series Instructions
Seametrics iMAG 4700-Series Quick Start Guide

Seametrics WT-Series
Turbine Flow MetersSeametrics WT-Series Flow Meters

WT-Series flow meters are available in either WTP schedule 80 PVC or WTS stainless steel bodies. The WT meters are available for 3 inch, 4 inch, 6 inch and 8 inch pipe, and feature corrosion resistant Kynar® (PVDF) turbine rotors. The flow sensor provides a pulse output that's compatible with either mounted FT430/440 or a Remote FT450 total and rate displays.

Call 1.800.833.7958


Seametrics WT-Series
Turbine Flow Meter Specifications

Seametrics WT-Series Instructions

Seametrics EX90-Series Electromagnetic Flow Meters

Seametrics EX90-Series Electromagnetic Flow Meters

EX90-Series insertion flow meters are suitable for installations with a wide range of temperature, pressure, and environments that are corrosive or with debris. EX90 meters are available 4 inch to 12 inch pipe installations, and feature an electrode resistant to fouling. Includes a battery powered programmable controller with display, and output signal to remote devices.

Call 1.800.833.7958


Seametrics EX90-Series Electromagnetic Flow Meters Specifications
Seametrics EX90-Series Instructions
Seametrics EX90-Series Quick Start Guide
Seametrics Insertion Meter Fittings

Seametrics FT400-Series
Rate and Total Flow Displays

Seametrics FT400-Series Flow Displays

The FT430/440/450 flow computers are microcontroller-based indicator/transmitters that interface with pulse output flow sensors to compute and display flow rate, flow total, and also generate output signals representing flow. These instruments are directly compatible with Seametrics mag or mechanical flow meters and include pulse and 4-20mA analog outputs can be used to signal external devices, such as metering pumps, water treatment controls, alarms.

Call 1.800.833.7958


Seametrics FT400-Series Flow Displays Specifications
Seametrics FT400-Series Instructions



Seametrics EX100/200-Series Insertion Flow Sensors

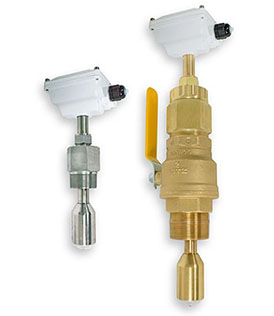

Seametrics EX100 and 200-Series Insertion Flow Sensors

EX100 & EX200–Series flow meters are adjustable depth insertion magmeters suitable for installations with a wide range of temperatures, pressure, and chemical conditions. EX-Series meters are available for 3 inch to 48 inch pipe installations, and feature an electrode resistant to fouling. The EX-Series is also available with a hot-tap model that can be installed or serviced without shutting down the line. These sensors are compatible with external PLC controllers or directly mounted to a FT430 or FT440 Seametrics display.

Call 1.800.833.7958


Seametrics EX100/200-Series Insertion Flow Sensors Specifications
Seametrics EX100/200-Series Instructions
Seametrics EX100/200-Series Quick Start Guide
Seametrics EX150/250-Series Quick Start Guide

Seametrics IP100/200-Series Insertion Flow Sensors

Seametrics IP100 and 200-Series Insertion Flow Sensors

IP100 & IP200-Series are adjustable depth insertion mechanical flow meters suitable for installations with a wide range of temperatures and pressure in clean water conditions. IP-Series meters are available for 3 inch to 40 inch pipe installations, and feature a non-drag hall-effect sensor giving these meters the widest flow range of any paddlewheel type instrument. The IP-Series is also available with a hot-tap model that can be installed or serviced without shutting down a pressurized line. These sensors are compatible with external PLC controllers or a directly mounted FT430, FT440 or FT450 remote Seametrics display.

Call 1.800.833.7958


Seametrics IP100/200-Series Insertion Flow Sensors Specifications
Seametrics IP100/200-Series Instructions

Seametrics EX800-Series Insertion Flow Sensors

Seametrics EX800-Series Insertion Flow Sensors

EX800-Series insertion electromagnetic flow sensors are fixed depth meters suitable for installations with a wide range of temperature, pressure, and environments that are corrosive or with debris. They are designed for use in conductive liquids and can be installed in 1 inch to 12 inch pipe. EX800 are compatible with external controllers or directly mounted to a FT430 or FT440 Seametrics display. Select from a variety of tee-fittings that match installation pipe materials.

Call 1.800.833.7958


Seametrics EX800-Series Insertion Flow Sensors Specifications
Seametrics EX800-Series Instructions
Seametrics EX800-Series Quick Start Guide
Seametrics Insertion Meter Fittings

Seametrics IP800-Series
Insertion Flow Meters

Seametrics IP800-Series Insertion Flow Meters

IP800-Series insertion mechanical flow meters are fixed depth meters suitable for a wide range of liquids. They are designed for use in nonconductive fluids and can be installed in ½ inch to 8 inch pipe. The IP800-Series instruments are compatible with external controllers or directly mounted to a FT430, FT440, and FT450 Seametrics total and rate display. Select from a variety of tee-fittings that match installation pipe materials.

Call 1.800.833.7958


Seametrics IP800-Series Insertion Flow Meters Specifications
Seametrics IP800-Series Instructions
Seametrics IP800-Series Quick Start Guide
Seametrics Insertion Meter Fittings
